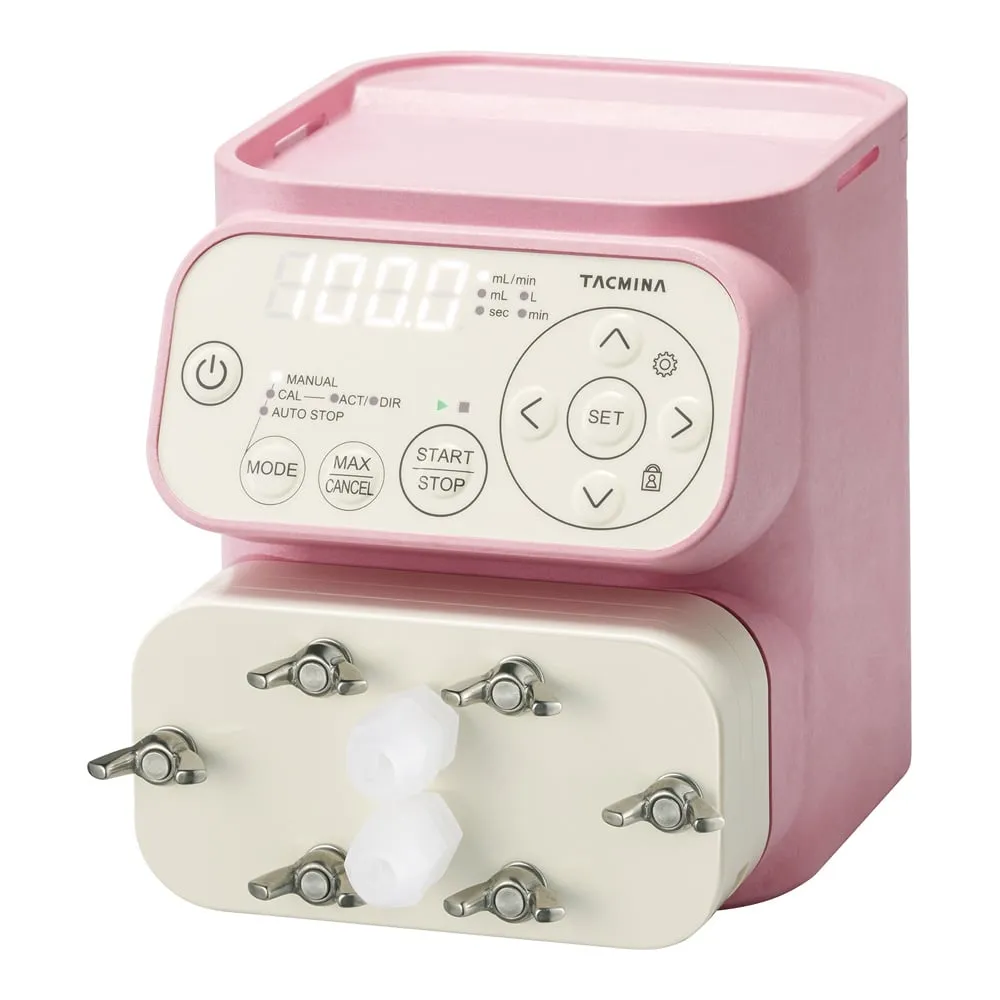

3-5037-01 Diaphragm Accurately Trace Chemical Feed Pump Smooth Flow Pump Q Series EPDM Packing Q-100-VE-P-S
Product Description
Product Model: 3-5037-01Product Brand: TACMINA CORPORAT […]
Contact Us
Product Details
Product Model: 3-5037-01
Product Brand: TACMINA CORPORATION
Features
- Excellent liquid delivery accuracy (repeatability ±1%) with no pulsation and continuous flow.
- Allows precise (0.01 mL/min units) and extensive (0.1~100mL/min) flow settings.
- Lightweight, compact, quiet, low vibration.
- The welding part can be disassembled just by removing the butterfly bolt by hand, and maintenance is easy.
- It comes with an outlet plug, so you can *** it immediately.
- We also have products with a pump head material of PTFE or SUS316.
Spec
- Model number: Q-100-VE-P-S
- Wetting part material (pump head/diaphragm/sheet valve, packing/fitting): PVC/PTFE/EPDM/PP
- Maximum flow rate: 100mL/min
- Maximum discharge pressure: 0.3MPa
- Flow rate setting range: 0.1 - 100mL/min
- Control system: Manual operation, auto-stop function, calibration, forced MAX operation
- Transported liquid temperature: 0 - 40℃ (no freezing)
- Transported liquid viscosity: 200mPa・s or less
- Connection port size: φ4 x φ6 hose or Rc1/8
- Size: 110 x 191 x 128.1mm
- Weight: 1.6kg
- Power supply: Single phase 100 - 240V ±10% (cord length: 2m)
- Resistance to environment: IEC Standards equivalent to IP65 (dust control, waterproof)
