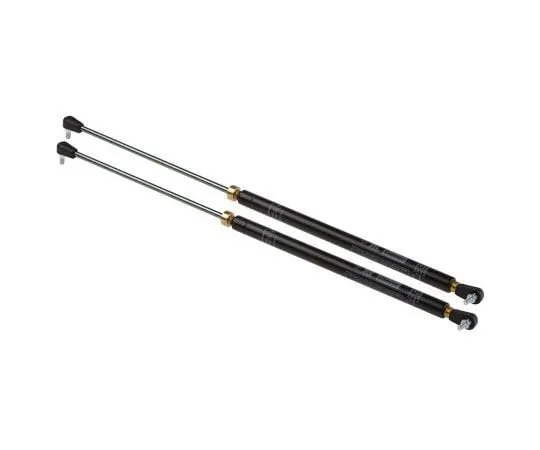

63-7409-91 Camloc Steel Gas Strut, with Ball & Socket Joint, 450mm Ext***ed Length, 200mm Stroke Length SSV6050500004
Electronic/Electrical Parts and Controll Equipments

63-7409-91 Camloc Steel Gas Strut, with Ball & Socket Joint, 450mm Ext***ed Length, 200mm Stroke Length SSV6050500004

model: 63-7409-91
brand: Camloc Gas Springs

Product Description

Product Model: 63-7409-91Product Brand: Camloc Gas Spri […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7409-91
Product Brand: Camloc Gas Springs

Features

  • Camloc Stop and Stay Gas Struts. From Camloc, a range of gas struts that are reliable, robust and simple to fit. The Stop and Stay struts are self-contained and maintenance free. Once fitted, smooth fingertip control allows the springs to manoeuvred into the desired position. A lock-nut at the *** of the piston rod is twisted (about half a turn) to suit the weight of the application. The struts are supplied as a pair with pre-fitted ball joint *** fittings and optional eye *** fittings. Except 14-28 sizes, these are supplied with just ball and socket *** fittings. Gas Strut Sizes. Gas Struts or Gas Springs are usually referred to by their size coding. The most popular are; 6-15, 8-18, 10-23 and 14-28. The smaller number relating to the piston rod diameter and the larger number relating to the springs over all diameter of the tube. Features and Benefits. Easy positional control Self-contained and maintenance free Quick and easy to fit Fingertip control. Applications. Gas struts or gas springs as they are also known are utilised in a wide range of applications. Some of the most common areas you would find gas struts are;. Monitor arms Sunbeds Printer canopy Lids

Spec

  • Quantity:1set
  • Locking & Holding : Any Position Lock
  • Cylinder Material : Steel
  • End Connector Material : Nylon, Steel
  • End Connector : Ball & Socket Joint
  • Ext***ed Length : 450mm
  • Stroke Length : 200mm
  • Rod Diameter : 15mm
  • Piston Diameter : 6mm
  • Maximum Force : 400N
  • Minimum Force : 50N
  • CODE No.:182-4655
