Electronic/Electrical Parts and Controll Equipments

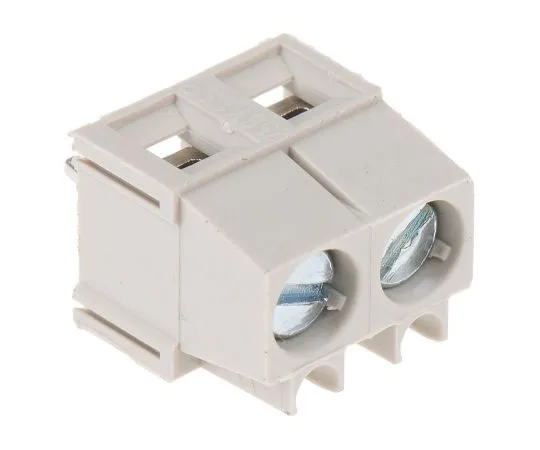

63-7409-65 Wieland 8292, 2 Way PCB Terminal Strip 25.193.0253.0
Product Description
Product Model: 63-7409-65Product Brand: Wieland Feature […]
Contact Us
Product Details
Product Model: 63-7409-65
Product Brand: Wieland
Features
- Terminal Blocks. Terminal blocks for soldering onto PCBs Clamping arrangement ensures that the wire is protected 2, 3 and 6 way types available in a side stackable format without loss of pitch Two cross-sections are available: 1.5mm ;sup>2 ;/sup> or 2.5mm ;sup>2 ;/sup> Accessible test points M2.5 steel screws
Spec
- Quantity:1bag(10pieces)
- Number of Contacts : 2
- Pitch : 5.08mm
- Number of Rows : 1
- Mounting Type : Through Hole
- Termination Method : Screw
- Type : PCB Terminal Block
- Current Rating : 10A
- Body Orientation : Straight
- Colour : Grey
- Voltage Rating : 300 V
- Series : 8292
- Width : 10mm
- CODE No.:181-4377
