Electronic/Electrical Parts and Controll Equipments

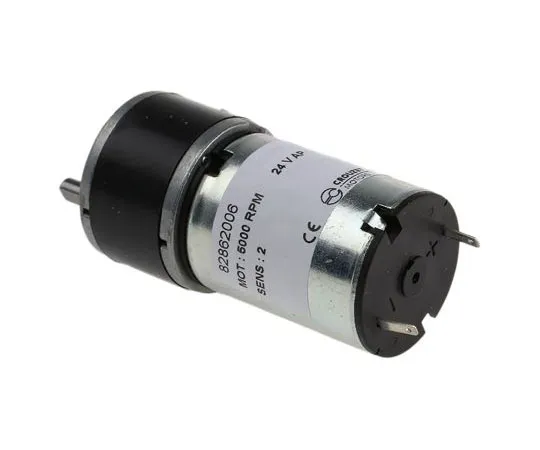

63-7407-72 Crouzet, 24 V dc, 0.5 Nm, Brushed DC Geared Motor, Output Speed 45 rpm 82862006
Product Description
Product Model: 63-7407-72Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7407-72
Product Brand: Crouzet
Features
- Geared DC Motor Series 82 862. A range of Crouzet DC motors from the 82 862 series with a maximum output torque of 0.5 Nm and a power range of 3 W. These geared motors are particularly suitable for *** in applications such as valves, pumps, medical equipment, access barriers, turnstiles, lift doors, water treatment, billboards plus many others.
Spec
- Quantity:1piece
- Output Speed : 45 rpm
- Supply Voltage : 24 V dc
- Maximum Output Torque : 0.5 Nm
- DC Motor Type : Brushed
- Shaft Diameter : 5mm
- Power Rating : 3 W
- Gearhead Type : Spur
- Length : 68.1mm
- Width : 35.4mm
- Core Construction : Iron Core
- CODE No.:178-4670
