Electronic/Electrical Parts and Controll Equipments

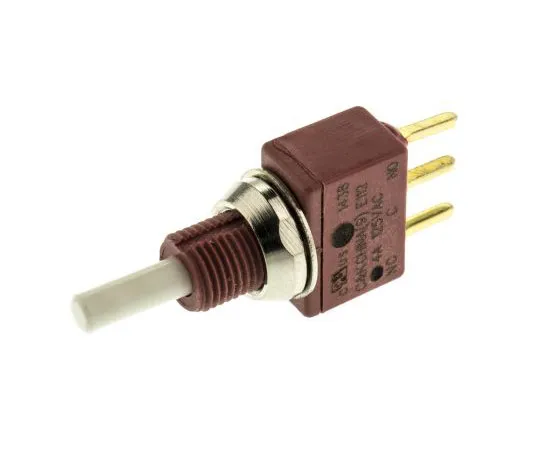

63-7403-78 C & K Single Pole Double Throw (SPDT) Momentary Push Button Switch, 6.35 (Dia.)mm, PCB E112LYCQE
Product Description
Product Model: 63-7403-78Product Brand: C & K Featu […]
Contact Us
Product Details
Product Model: 63-7403-78
Product Brand: C & K
Features
- Momentary SPDT. Waterproof and suitable for immersion washing and wave soldering Vertical versions available with or without mounting bracket The E112LYCQE ( ; 174-6088 174-6088 ) has a threaded bush for panel mounting and an 8.58 mm long pushbutton Vertical with bracket ( ; 174-6101 174-6101 ) Right angle horizontal ( ; 174-6094 174-6094 ) Right angle vertical ( ; 174-6117 174-6117 ) Gold contacts Sealed case material; Glass-filled nylon 6//6 (UL 94 V-0) Dielectric strength: 1000Vrms Insulation resistance: 1000 MOhm
Spec
- Quantity:1piece
- Switch Operation : Momentary
- Mounting Type : PCB
- Illuminated : No
- Contact Configuration : Single Pole Double Throw (SPDT)
- Panel Cut Out Size : 6.35 (Dia.)mm
- Panel Cut Out Diameter : 6.35mm
- Contact Current Rating : 4 A @ 28 V dc
- Actuator Shape : Plunger
- Terminal Type : Through Hole
- Actuator Type : Plunger
- CODE No.:174-6088
