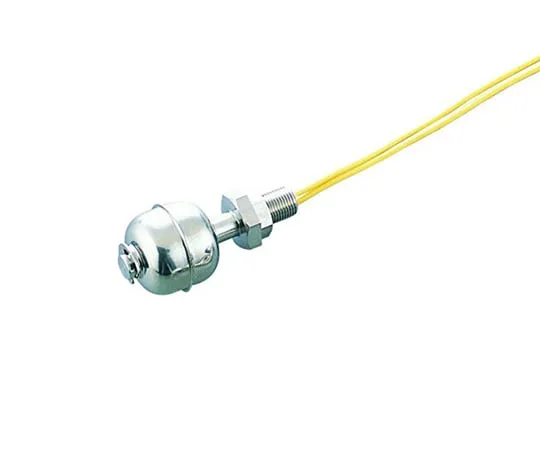

1-3120-01 Float Level Switch KS-2A KS2-A
model:
1-3120-01
category:
toner
Product Description
Product Model: 1-3120-01 Features The contact is reliab […]
Contact Us
Product Details
Product Model: 1-3120-01
Features
- The contact is reliable and has a long life of more than 1 million times (200 V, 50VAmax • Coil Drive).
- If you set the float in reverse, the rise will be off (reversible).
Spec
- Model number: KS2-A
- Type: Standard type (rise ON, 1 point detection)
- Maximum *** voltage: 250VAC DC200V
- Maximum opening/closing capacity: 50VA 50W (coil load 8VA)
- Maximum switching current: 0.5A
- Withstand voltage contact between: DC400V
- Contact resistance: 100mΩ or less (initial value)
- Insulation resistance: 100MΩ or more (500VDC, between lead and body)
- Insulation pressure resistance: 2,000VAC, 1 second (between lead and body)
- Material: Stainless
- Available temperature: 100℃
- *Control unit is required to control separately.
- RoHS3 (EU)2015/863 Certificates can be issued
