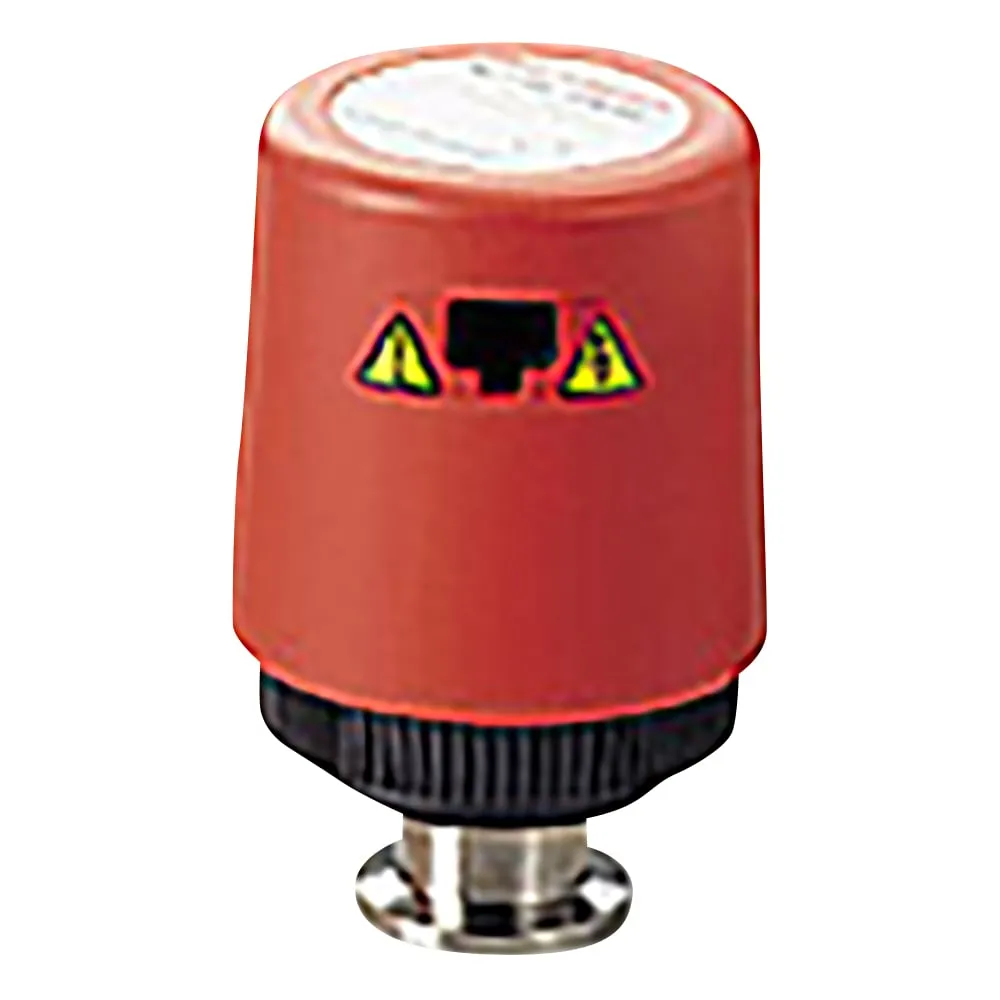

1-3064-13 Inverted Magnetron Gauge AIM-S-NW25
Product Description
Product Model: 1-3064-13Product Brand: Edwards Ltd Feat […]
Contact Us
Product Details
Product Model: 1-3064-13
Product Brand: Edwards Ltd
Features
- Built-in adjustable set point for process control.
- The electrical system has been improved to reduce ion current at high pressure, so the cleaning interval has been ext***ed.
- Unique striker assists speedy start even in high pressure or contaminated conditions.
- Due to the replaceable body tube, it can be replaced quickly without requiring prior calibration.
- Cleaning and maintenance by the ***r is possible by using the electrode service kit.
Spec
- Model number: AIM-S-NW25
- Product name: Inverted magnetron gauge
- Power supply: DC20 - 36V 3.5W
- Output signal: Operation output/DC2 - 10V, Abnormal signal output/DC0 - 2V, 10 - 13.5V, Output impedance/0.1Ω, Minimum load/10kΩ
- Size: φ79 x 116mm
- Weight: 700g
- Vacuum attachment portion: NW25
- 1 - 10^-6Pa
