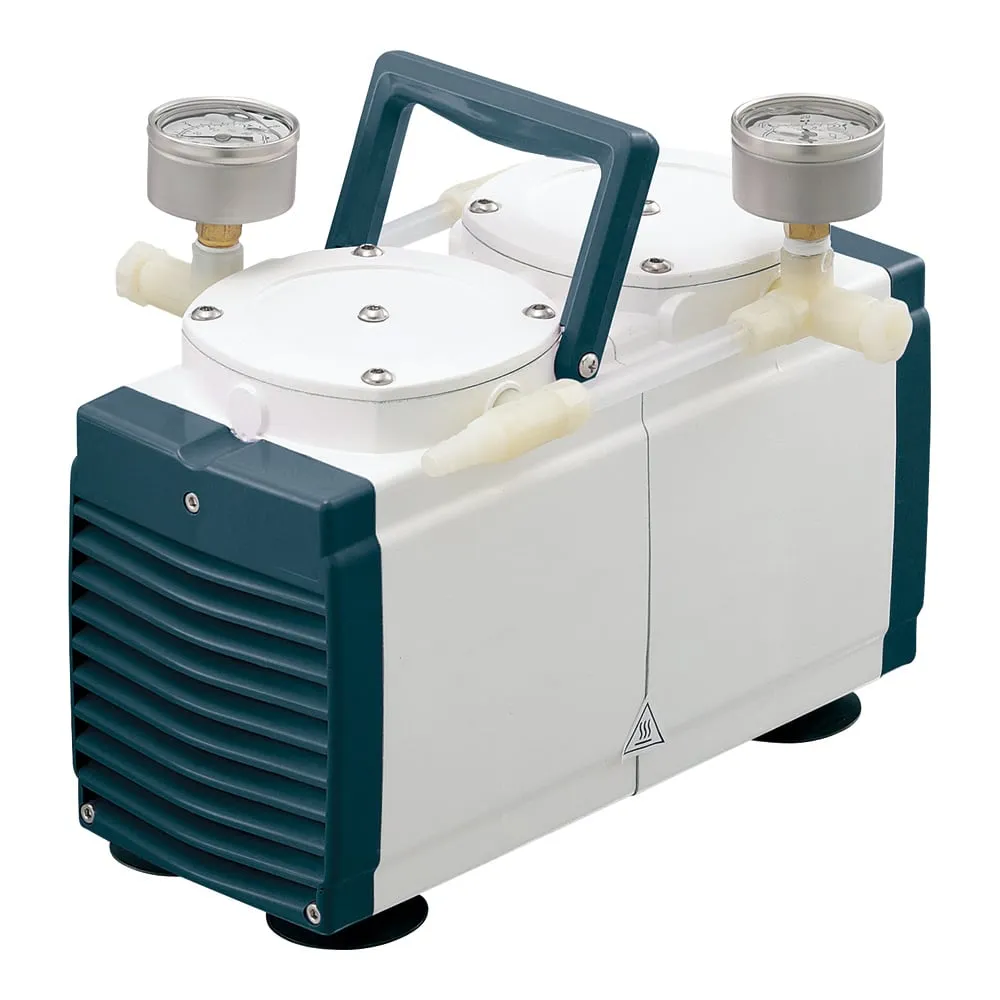

2-945-02 Multi Dry Pump Suction-Discharge Convertible Type MP-60
Product Description
Product Model: 2-945-02Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 2-945-02
Product Brand: AS ONE Corporation
Features
- Dry pump for both pressurization and depressurization.
- Multi-type vacuum pump capable of both suction and pressure.
- Since the oil free diaphragm type is adopted, there is no need to worry about contamination.
- Vacuum gauges and pressure gauges are included so you can check the usage status.
- With a leak valve for both discharge and suction, the vacuum and pressure can be adjusted.
Spec
- Achieving pressure: -0.08MPa
- Highest pressure: 0.2MPa
- Connection port: φ6mm hose nipple
- Power supply: 100VAC 50/60Hz
- Power consumption: 200W
- Power cord length: 1.5m
- Safety device: Motor overheat protection equipment
- Connection Material: Diaphragm valve/NBR (Nitrile rubber), Valve/Polypropylene, Pump head/aluminum alloy
- Nozzle diameter: φ6 mm
- Noise: 50dB
- Size: 310 x 200 x 240mm
- Weight: 10kg
- Exhaust speed (L/min): 60 (50 Hz)/72 (60 Hz)
- Model number: MP-60
