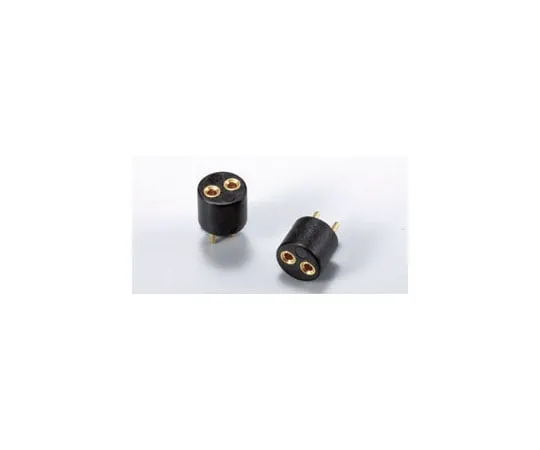

63-3141-93 Socket for LED (10 pcs) LQ-1-0.5
model:
63-3141-93
brand:
MAC EIGHT CO., LTD
Product Description
Product Model: 63-3141-93Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 63-3141-93
Product Brand: MAC EIGHT CO., LTD
Spec
- Package: LQ
- Contents: LED socket
- Compatible LED diameter: phi 0.45 ~ 0.6
- Color: Gold-plated
- Type: -
- Holder Size: -
- Entries: 10
- Material: Resin Part: PPS Black (UL 94 V-0)/Socket Part: Body ... Brass/Contact ... Beryllium Copper
- Treatment: Nickel Underlay Gold Plating
- Current rating: 1A
- Contact resistance: 10 m.OMEGA. or less
- Insulation resistance: 500 megohms or more
- Insulation voltage: 1000 V AC, 1 minute DC
- Number of times/force of insertion and removal: 100 times or more/140 g or more
- Reflow: Yes
- Operating temperature range: -40 to + 125 degrees C
- Printed circuit board mounting hole diameter: 0.8 phi
- It is a socket that can accommodate PHI-3 and PHI-5 LEDs.
