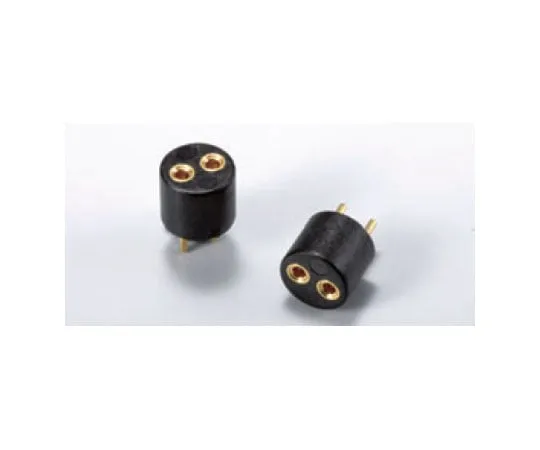

63-3141-92 Socket for LED (10 pcs) LQ-1
Electronic/Electrical Parts and Controll Equipments

63-3141-92 Socket for LED (10 pcs) LQ-1

model: 63-3141-92
brand: MAC EIGHT CO., LTD

Product Description

Product Model: 63-3141-92Product Brand: MAC EIGHT CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3141-92
Product Brand: MAC EIGHT CO., LTD

Spec

  • Package: LQ
  • Contents: LED socket
  • Compatible LED diameter: phi 0.6 ~ 0.8/0.5/0.64
  • Color: Gold-plated
  • Type: -
  • Holder Size: -
  • Entries: 10
  • Material: Resin Part: PPS Black (UL 94 V-0)/Socket Part: Body ... Brass/Contact ... Beryllium Copper
  • Treatment: Nickel Underlay Gold Plating
  • Current rating: 3A
  • Contact resistance: 10 m.OMEGA. or less
  • Insulation resistance: 500 megohms or more
  • Insulation voltage: 1000 V AC, 1 minute DC
  • Number of times/force of insertion and removal: 100 times or more/140 g or more
  • Reflow: Yes
  • Operating temperature range: -40 to + 125 degrees C
  • Printed circuit board mounting hole diameter: 0.8 phi
  • It is a socket that can accommodate PHI-3 and PHI-5 LEDs.
