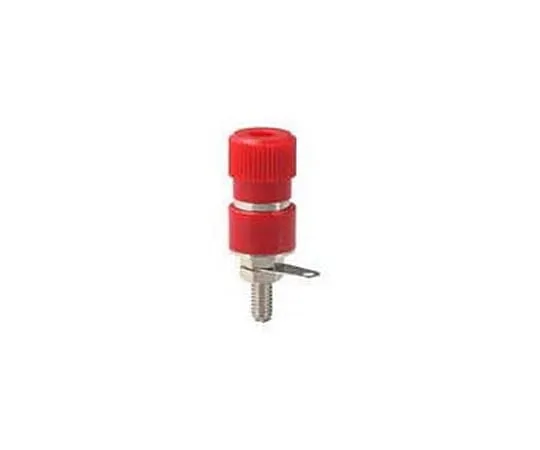

63-3138-10 Insulated Terminal 3.8 mm Mounting Hole phi 8.7 mm red T-375-12-R
Electronic/Electrical Parts and Controll Equipments

63-3138-10 Insulated Terminal 3.8 mm Mounting Hole phi 8.7 mm red T-375-12-R

model: 63-3138-10
brand: SATO PARTS CO., LTD.

Product Description

Product Model: 63-3138-10Product Brand: SATO PARTS CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3138-10
Product Brand: SATO PARTS CO., LTD.

Features

  • It represents a screw-tight terminal. The origin of the common name is uncertain, but it seems that parts of the same type already existed by the *** of World War II. In addition to the screw tightening of the rose wire and arrow tip, the center of the shaft is a phi 4 mm hole into which a banana plug can be inserted, which is not lacking even today. There are no horizontal holes for inserting lines into the shaft. The T-375 series is a type (commonly known as land type) with separate knobs. The so-called sea-type, which does not have a separate knob, is the T-12.

Spec

  • Number of pins: -
  • Connector configuration: insulated terminal
  • Panel mounting method: Nut tightening
  • Rug: Yes
  • Insertion hole: Yes
  • Removing knob: Yes
  • Outline: phi 12
  • Body color: Red
  • Rating: 125 V -10 A
  • Withstand voltage: 1000 VAC (1 minute)
  • Insulation resistance: 100 megohms or more (500 VDC)
  • Mounting plate thickness: -
  • Mounting screw pitch: -
