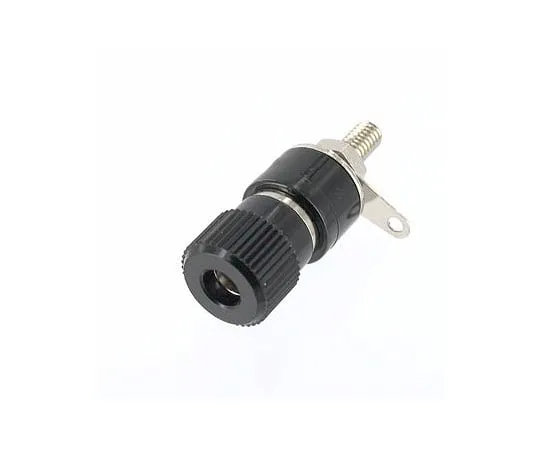

63-3138-08 Insulated Terminal 3.8 mm Mounting Hole Phi 8.7 mm Black T-375-12-B
model:
63-3138-08
brand:
SATO PARTS CO., LTD.
Product Description
Product Model: 63-3138-08Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3138-08
Product Brand: SATO PARTS CO., LTD.
Features
- It is a representative of a screw-on terminal. The origin of the common name is uncertain, but by the *** of World War II, the same type of parts already existed. In addition to the screw fastening of the rose wire and the arrow type tip, the center of the shaft is a φ4mm hole where a banana plug can be inserted, so there is no shortage of specifications today. There are no horizontal holes for inserting lines into the axis. The T-375 series is a type with separate knobs (commonly known as the Riku type). The common name of the sea type that does not separate the knobs is T-12.
Spec
- Number of pins: -
- Connector configuration: insulated terminal
- Panel mounting method: Nut tightening
- Rug: Yes
- Insertion hole: Yes
- Removing knob: Yes
- Outline: phi 12
- Body color: Black
- Rating: 125 V -10 A
- Withstand voltage: 1000 VAC (1 minute)
- Insulation resistance: 100 megohms or more (500 VDC)
- Mounting plate thickness: -
- Mounting screw pitch: -
