Electronic/Electrical Parts and Controll Equipments

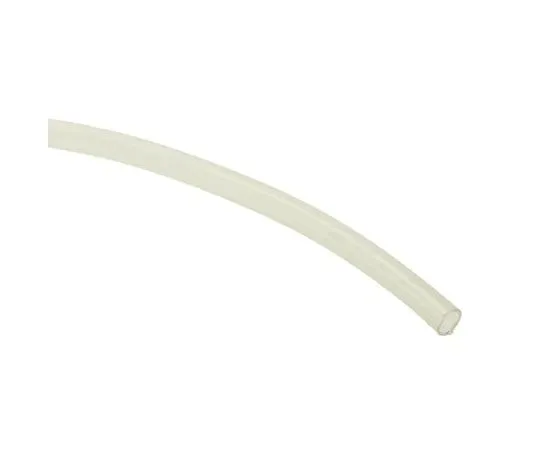

63-7391-38 Alpha Wire PTFE Natural Cable Sleeve, 2.31mm Diameter TFT25011 NA005
Product Description
Product Model: 63-7391-38Product Brand: Alpha Wire Feat […]
Contact Us
Product Details
Product Model: 63-7391-38
Product Brand: Alpha Wire
Features
- AMS3653 and ASTM D 3295. PTFE sleeves. The Alpha Wire PTFE sleeves are approved by AMS3653 and ASTM D 3295 and are recognised for their impressive maintainance of strength and flexibility at high temperatures. The sleeves are thoroughly insulated, allowing for continuious *** up to +260 °C. As well as this, they are also waterproof, fire-retardant, not affected by mould and have excellent dielectric resistance at high frequencies.
Spec
- Quantity:1set
- Sleeve Diameter : 2.31mm
- Colour : Natural
- Material : PTFE
- Minimum Cable Diameter : 2.31mm
- Maximum Cable Diameter : 2.57mm
- Minimum Operating Temperature : -75°C
- Maximum Operating Temperature : +260°C
- Dielectric Strength : 55.1kV/mm
- Wall Thickness : 0.41mm
- CODE No.:170-3097
