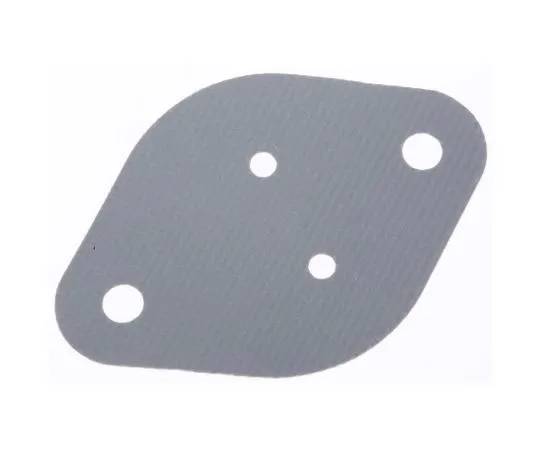

63-7390-79 Thermal Interface Pad, Fibreglass, 0.9W/m·K, 41.91 x 28.96mm 0.178mm SP400-0.007-00-05
Product Description
Product Model: 63-7390-79Product Brand: Bergquist Featu […]
Contact Us
Product Details
Product Model: 63-7390-79
Product Brand: Bergquist
Features
- Sil-Pad 400 Insulators. The Sil-Pad 400s are silicon rubber and fibreglass-based insulators This flame retardant material is designed to act as a thermo-conductive insulator They have excellent mechanical and physical characteristics They are resistant to cleaning products The fibreglass reinforcement provides excellent resistance to perforation The pliable surfaces provide a perfect surface contact as well as excellent thermal dissipation The Sil-Pad 400s are non-toxic Applications: ***d as an insulator between power devices and heatsinks
Spec
- Quantity:1bag(50pieces)
- Dimensions : 41.91 x 28.96mm
- Thickness : 0.178mm
- Length : 41.91mm
- Width : 28.96mm
- Thermal Conductivity : 0.9W/m·K
- Material : Fibreglass
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +180°C
- Hardness : Shore A 85
- Material Trade Name : Sil-Pad 400
- Operating Temperature Range : -60 → +180 °C
- CODE No.:169-2183
