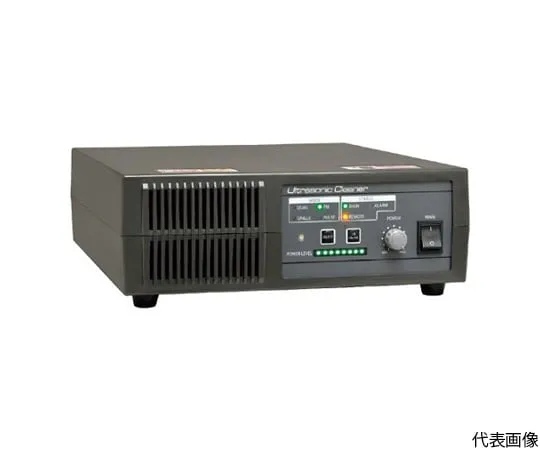

64-8769-74 Ultrasonic Cleaning Device (Oscillator/Vibrator) VS-628A-TN
Product Description
Product Model: 64-8769-74Product Brand: VELVO-CLEAR Fea […]
Contact Us
Product Details
Product Model: 64-8769-74
Product Brand: VELVO-CLEAR
Features
- The digital control system enables optimal cleaning by oscillating ultrasonic waves at an optimum frequency and a stable and constant output for various load variations such as liquid depth and temperature.
- Various settings and operation status can be checked by RS485 communication function.
- When replacing with the same oscillator unit, adjustment of the oscillator is unnecessary.
- When an abnormality occurs in the oscillator, the cause is diagnosed and six kinds of abnormality are displayed by the lighting pattern of the front panel lamp.
- For cleaning medical instruments, optical instruments and mechanical parts.
- For various ultrasonic cleaning such as removal of cutting powder and cutting oil from tap holes.
- For degreasing metal parts, resin, and stubborn stains.
- Please prepare a separate washing tank.
Spec
- High frequency output (W): 600
- High frequency input: 600
- Oscillator Dimensions (mm): 350 x 200 x 100
- Oscillation frequency (kHz): 28
- Oscillator mass (kg): 14
- Mass of diaphragm (kg): 14
- Power supply (V): Select from single phase 200 V. 220 V. 230 V. 240 V (factory default)
- Current (A): 6
- Tank capacity (L):
- Oscillator: Four oscillation modes (DUAL/FM 400/800 W, SINGLE 600/1200 W, PULSE 600/1200 W)
- Nominal oscillation frequency: 28 kHz/40 kH
- Rated power consumption: 1200 VA/2400 VA
- DUAL: Ultrasonic waves are propagated to a far distance by cleaning the inside of a thin tube and a through-hole substrate by proximity two-frequency switching oscillation.
- FM: Moving of standing wave position by frequency modulation eliminates uneven washing and reduces work damage
- SINGLE: Single frequency oscillation generates powerful cavitation and cleans stubborn dirt.
- PULSE: Effective for soft cleaning and deaeration promotion by output modulation intermittent oscillation
- Material/Finish: Board: Stainless Steel (SUS 304)
- Set Contents/Accessories: Ultrasonic Oscillator: 1 Unit, Immersion Type Vibrator: 1 Unit, Power Cord (3.5 m) 1 Unit, Output Cord (3.5 m) 1 Unit, Instruction Manual 1 Unit
- Country of origin: Japan
- Securities Code: 201 -5308
