64-8769-73 Ultrasonic Cleaning Device (Oscillator/Vibrator) VS-1240A-TSH
Product Description
Product Model: 64-8769-73Product Brand: VELVO-CLEAR Fea […]
Contact Us
Product Details

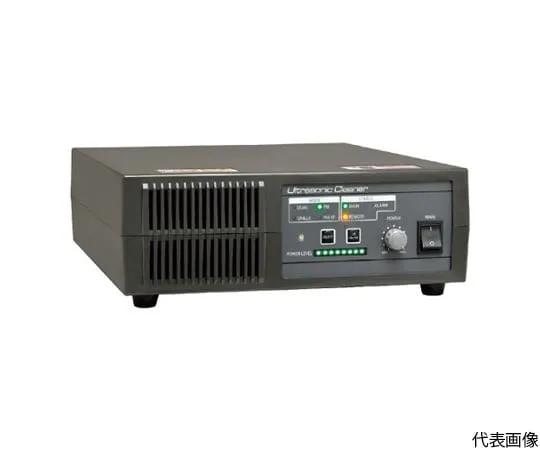

Product Model: 64-8769-73
Product Brand: VELVO-CLEAR
Features
- The digital control system enables optimal cleaning by oscillating ultrasonic waves at an optimum frequency and a stable and constant output for various load variations such as liquid depth and temperature.
- Various settings and operation status can be checked by RS485 communication function.
- When replacing with the same oscillator unit, adjustment of the oscillator is unnecessary.
- When an abnormality occurs in the oscillator, the cause is diagnosed and six kinds of abnormality are displayed by the lighting pattern of the front panel lamp.
- For cleaning medical instruments, optical instruments and mechanical parts.
- For various ultrasonic cleaning such as removal of cutting powder and cutting oil from tap holes.
- For degreasing metal parts, resin, and stubborn stains.
Spec
- High frequency output (W): 1200
- High frequency input: 1200
- Oscillator Dimensions (mm): 500 x 300 x 224
- Oscillation frequency (kHz): 40
- Oscillator mass (kg): 40
- Mass of diaphragm (kg): 40
- Power supply (V): Select from single phase 200 V. 220 V. 230 V. 240 V (factory default)
- Width (mm): 710
- Depth (mm): 360
- Height (mm): 405
- Current (A): 12
- Inner Tank Dimension (mm): 500 x 300 x 224
- Tank Capacity (L): 35
- Oscillator: Four oscillation modes (DUAL ・ FM 800 W, SINGLE 1200 W, PULSE 1200 W)
- Nominal oscillation frequency: 28 kHz
- Rated power consumption: 2400 VA
- DUAL: Ultrasonic waves are propagated to a far distance by cleaning the inside of a thin tube and a through-hole substrate by proximity two-frequency switching oscillation.
- FM: Moving of standing wave position by frequency modulation eliminates uneven washing and reduces work damage
- SINGLE: Single frequency oscillation generates powerful cavitation and cleans stubborn dirt.
- PULSE: Effective for soft cleaning and deaeration promotion by output modulation intermittent oscillation
- Material/Finish: Tank: Stainless Steel (SUS 304), Cleaning Tank Case: Steel, Cleaning Tank: SUS 304
- Set Contents/Accessories: Ultrasonic Oscillator: 1, Tank Type (with Heater), Vibrator: 1, Washing Tank Lid: 1, Power Cord (3.5 m) 1, Instruction Manual: 1
- Country of origin: Japan
- Securities Code: 201 -5312
