Features

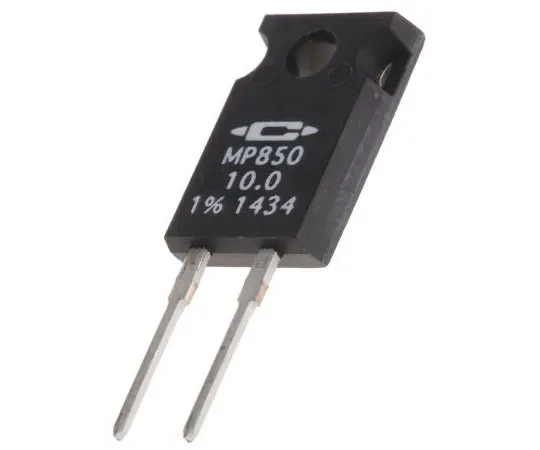

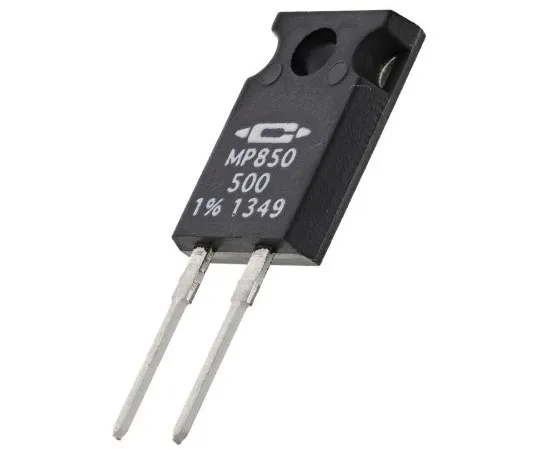

• MP850 series film resistors 50 W. The Caddock MP850 Series Kool-Pak® Power Film Resistors include an integral metal mounting surface for highly efficient thermal transfer. The TO-220 style power package provides 50 W at +25 ºC case temperature, derated to zero at +150 ºC. Composed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate, the substrate is secured to a copper heat sink which becomes the metal mounting surface. The MP850 Series Kool-Pak Power Film Resistors offer a resistance range of 0.20 Ω to 10.0K. Features ; Benefits:. High power film resistors in TO-220 enclosure. Non inductive. Electrically insulated enclosure. These types of components are very ***ful at high frequencies up to 500 MHz.
