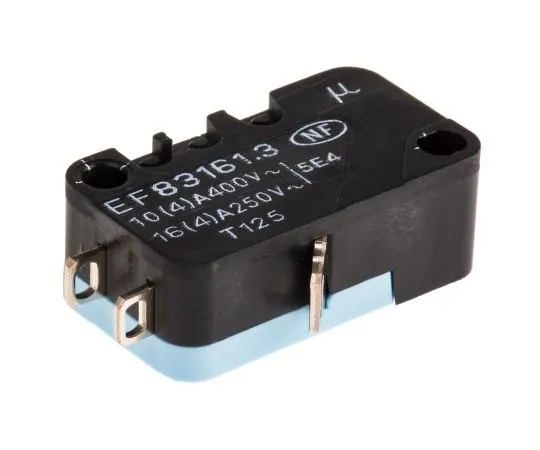

63-7384-45 NO/NC Plunger Microswitch, 20 A @ 250 V ac 83161301
Product Description
Product Model: 63-7384-45Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7384-45
Product Brand: Crouzet
Features
- UTE; VDE; BS; UL; CSA etc. V3 type miniature microswitches DIN 41635 A. Range of standard microswitches available with changeover function. Choice of actuators (supplied separately): flat or roller levers are available in different lengths and three different mounting positions are provided on the microswitch
Spec
- Quantity:1piece
- Actuator Type : Plunger
- Terminal Type : Solder
- Contact Current Rating : 20 A @ 250 V ac
- Contact Configuration : NO/NC
- IP Rating : IP40
- Operating Force : 0.8 N
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +125°C
- Switch Housing : V3 Housing
- Contact Material : Silver Nickel
- Case Material : Polyamide
- Mechanical Life : 2 x 10^7Operations
- Release Force : 0.2N
- Operating Temperature Range : -20 → +125°C
- CODE No.:161-6707
