Electronic/Electrical Parts and Controll Equipments

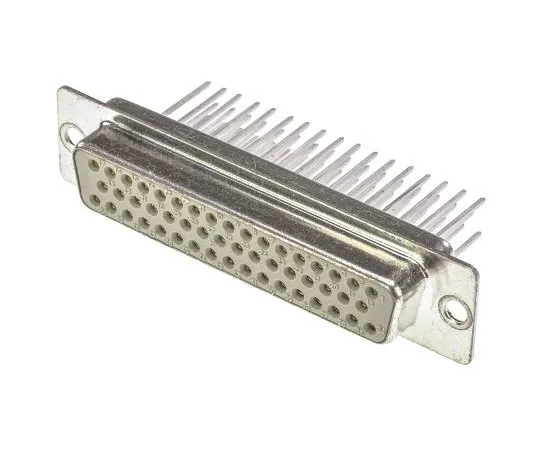

63-7382-44 Harting 0967 Series 2.76mm Pitch 50 Way Straight Panel Mount Female Wire Wrap D-sub Connector, 7.5A 9670504707
Product Description
Product Model: 63-7382-44Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-7382-44
Product Brand: HARTING
Features
- MIL-C-24308; DIN 41652; CECC 75301-802. Harting Wire Wrap D-Sub Plug and Socket Connectors. D-sub plug and socket connectors with wire wrap posts and turned male contacts (d-sub plug connectors) and turned female contacts (d-sub socket connectors). These wire-wrap d-sub plug and socket connectors have 3.1mm mounting holed for mating and a mating interface according to MIL-C-24308, DIN 41652, CECC 75301-802.
Spec
- Quantity:1piece
- G***er : Female
- Number of Contacts : 50
- Body Orientation : Straight
- Pitch : 2.76mm
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Housing Material : Metal
- Current Rating : 7.5A
- Voltage Rating : 1 kV
- Dimensions : 67 x 15.5 x 18mm
- Mounting Type : Panel Mount
- Series : 0967
- Depth : 18mm
- Minimum Operating Temperature : -55°C
- CODE No.:160-1604
