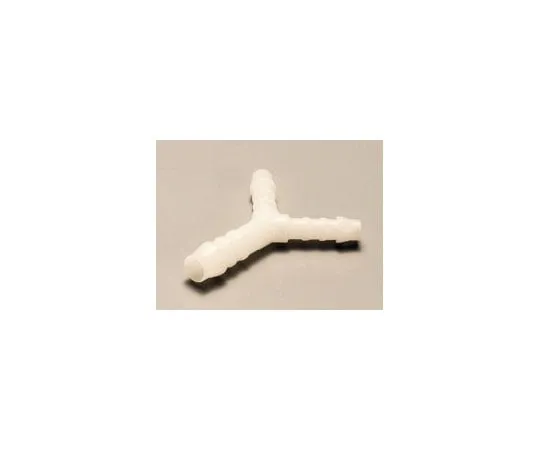

61-9428-70 Noruma Polyacetal Y Type Different Diameter Hose Fitting YRS6-8-6
Product Description
Product Model: 61-9428-70Product Brand: KOKUGO Co., Ltd […]
Contact Us
Product Details
Product Model: 61-9428-70
Product Brand: KOKUGO Co., Ltd.
Features
- It has excellent mechanical properties, fatigue resistance, creep resistance, heat resistance, and dimensional stability.
- Material: Polyacetal Color: White Weighted Deflection Temperature: 110°C (1.82 MPa) Maximum Operating Pressure: 1 MPa Operating Temperature Range: -10 to +70°C Suitable for use in drinking water, agricultural water, oil, gasoline and water tanks.
Spec
- Quantity: 10 pcs
- Dimensions: φD1 (mm) 6 x φD2 (mm) 4 x φD3 (mm) 8 x φD4 (mm) 5.6 x φD5 (mm) 7.5 x φD6 (mm) 10 x L1 (mm) 48 x L2 (mm) 20.5
