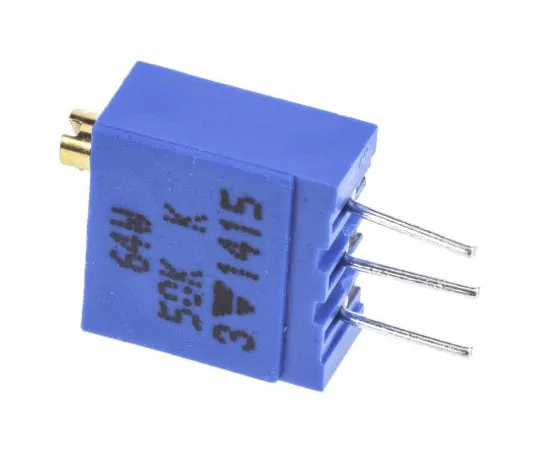

63-7379-26 50kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay 64W Series M64W503KB40
Product Description
Product Model: 63-7379-26Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7379-26
Product Brand: Vishay
Features
- Top Adjust 64W Series. Slim body profile, higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand-offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity:1box(200pieces)
- Maximum Resistance : 50kΩ
- Mounting Type : Through Hole
- Number of Turns : 19 (Electrical), 22 (Mechanical)
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 64W
- Termination Style : Pin
- Tolerance : ±10%
- Shaft Diameter : 2.2 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:169-3081
