63-7372-05 RS PRO DPDT Non-Latching Relay Plug In, 24V dc Coil, 5A 144-1602
Product Description
Product Model: 63-7372-05Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7372-05
Product Brand: RS PRO
Features
- For base please see stock number ; 144-1609 144-1609. RS Pro RFT Series DPCO Relays. RS Pro RFT series double pole miniature interface realys with LED indicator can be ***d to increase the functions in electrical enclosures, ***ful for industrial applications, machine building and HVAC. Features and Benefits. Double Pole 5A plug-in interface relays. LED indicator. Gold plated contacts. Bases for assembly on DIN Rail to be ordered separately
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 530mW
- Coil Resistance : 1.1 kΩ
- Isolation Coil To Contact : 5kV ac
- Contact Configuration : DPDT
- Mounting Type : Plug In
- Switching Current : 5A
- Terminal Type : PCB Pin
- Number of Poles : 2
- Maximum Switching Current AC : 5 A
- Maximum Switching Current DC : 8 A
- Maximum Switching Voltage AC : 250V
- Maximum Switching Voltage DC : 30V
- Standards Met : CE:CQC, CULus
- CODE No.:144-1602
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5098-99 TDK Ferrite Bead (Chip Bead), 2 x 1.25 x 0.85mm (0805 (2012M)) MMZ2012Y202BT
model: 63-5098-99
brand: TDK
Electronic/Electrical Parts and Controll Equipments

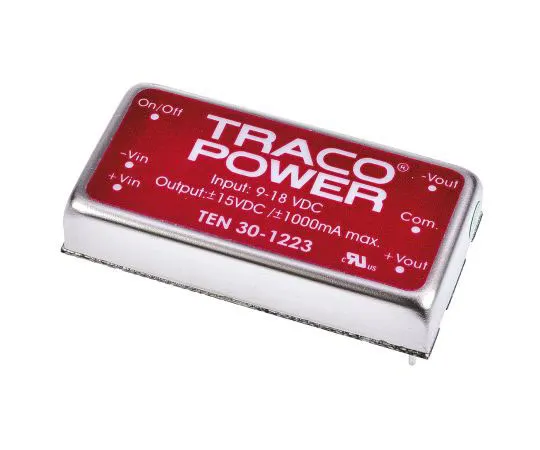

63-7658-86 TRACOPOWER TEN 30 30W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±15V dc TEN 30-1223
