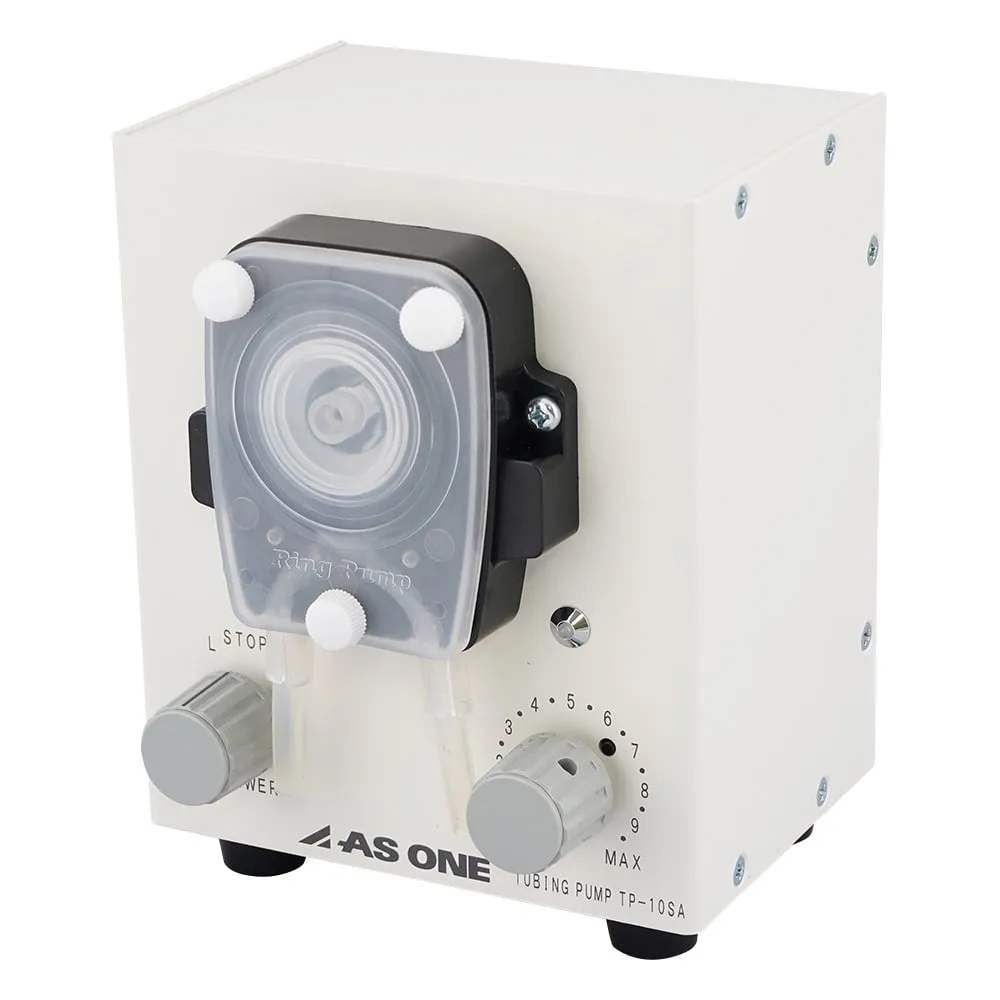

2-7870-01 Tubing Pump 0.1 - 90mL/Min TP-10SA
Product Description
Product Model: 2-7870-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7870-01
Product Brand: AS ONE Corporation
Features
- High precision stepping motor is ***d for excellent accuracy and durability.
- Excellent reproducibility and stability of rotation speed, so strong and stable *** against load fluctuation, etc.
- It is a self-absorbing type that does not need to be summoned, and it can transfer liquids with high viscosity.
- High-precision stepping motor enables stable liquid delivery even at high flow rates.
- The LED lamp indicates the direction of rotation.
- The tube can be easily replaced.
Spec
- Model number: TP-10SA
- Applicable tube diameter: Inner diameter φ1mm x Outer diameter φ3mm, Inner diameter φ2mm x Outer diameter φ4mm, Inner diameter φ3mm x Outer diameter φ5mm, Inner diameter φ4mm x Outer diameter φ6mm
- Compatible tube material: Silicone, Tygon (R), PharMed (R)
- Motor: Stepping motor
- With forward reverse switch function
- Body material: Steel coating
- Power supply: 100-240VAC 50/60Hz
- Plug shape: 2P plug (AC adapter)
- Size: 120 x 125 x 150mm
- Weight: 1.5kg
- Flow rate (when using water, Silicone tube): 0.1 - 100mL/min
- Rotation speed: 2 - 150rpm
- *Flow rate range is limited dep***ing on tube diameter.
- Control Panel : English
- Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
- RoHS3 (EU)2015/863 Certificates can be issued
