Features

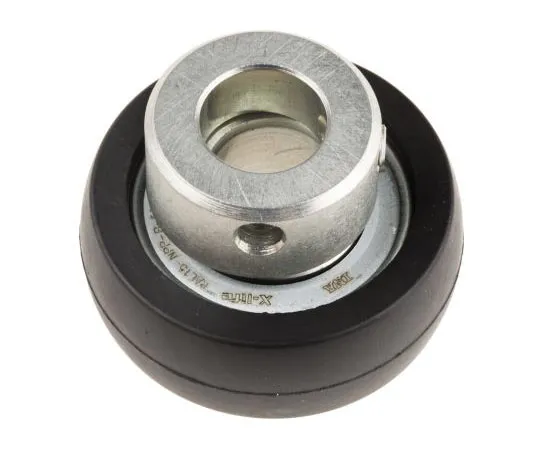

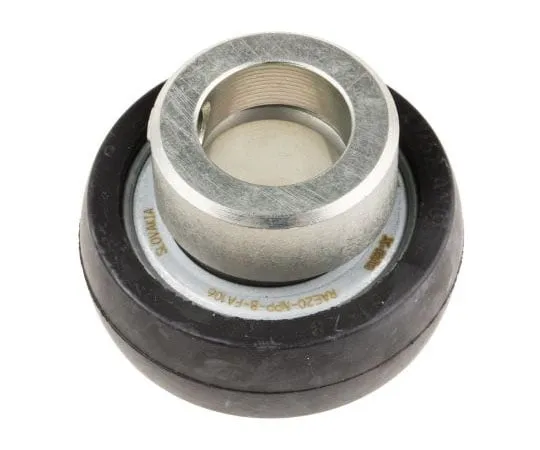

• Radial Insert Ball Bearings with Rubber Interliner. INA from Schaeffler radial insert ball bearings with rubber interliners are on the shaft using an eccentric locking collar. The outer ring is encased in a thick-walled NBR interliner which absorbs vibrations and shocks. The interliners have either a spherical or cylindrical outside surface. The P seal is two zinc-coated sheet steel washers with intermediate NBR part, seal lip axially preloaded. To protect the seal lip from mechanical damage, the outer sheet steel washer ext***s a considerable distance down towards the bearing inner ring. Used in narrow radial insert ball bearings with inner ring ext***ed on one side. Features and Benefits. Lower operating costs. Reduced maintenance due to improved lubrication. Lower heat generation. Less noise. Inner ring and locking collar have anti-corrosion protection. Shaft diameters from 12 mm to 50 mm (RABRB). Shaft diameters 20 mm (RCRA) 25 mm (RCRB). Shaft diameters 30 mm (RCSMA) 15 mm to 25 mm (RCSMB). Product Application Information. Bearings with rubber interliners cannot be lubricated. Suffixes. FA106 - Bearing subjected to special noise testing
