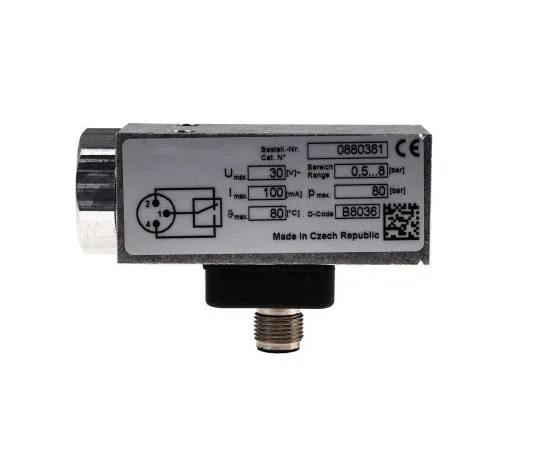

63-7366-32 RS PRO Pressure Switch, M12 x 1 0.5bar to 8 bar 136-6276
Product Description
Product Model: 63-7366-32Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7366-32
Product Brand: RS PRO
Features
- UL , TUV and CSA. RS Pro Pneumatic Pressure Switch 18D- ATEX. The 18D series pneumatic pressure switches from RS Pro are intrinsically safe to operate and contain a microswitch with gold plated contacts. These pressure switches are ATEX approved. Features and Benefits. Microswitch with gold plated contacts. High number of switching cycles. Vibration resistant to 15 g. Microswitch approved by UL and CSA. Intrinsically safe operation. Assortment of pressure ranges. Temperature range: 0°C to +80°C. FKM sealing. Product Application Information. For neutral, gaseous and liquid fluids.
Spec
- Quantity:1piece
- Minimum Operating Pressure : 0.5bar
- Maximum Operating Pressure : 8 bar
- Pressure Type : Electro-Mechanical
- Suitable Media : Gas, Liquid
- Connection : M12 x 1
- Voltage Rating : 30V
- Connection Thread Size : M12 x 1
- Connection Thread Standard : NPT
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +85°C
- IP Rating : IP67
- Maximum Pressure Setting : 8bar
- CODE No.:136-6276
