Electronic/Electrical Parts and Controll Equipments
63-7366-20 RS PRO Reed Switch Rectangular 140V, NO/NC, 250 mA 136-5753
Product Description
Product Model: 63-7366-20Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7366-20
Product Brand: RS PRO
Features
- RS Pro Compact Reed Proximity Sensors. RS Pro compact reed proximity sensors feature normally open contacts that close in the presence of a ferrous metal. Features and Benefits. Normally open contact. 6 mm activation distance (may vary dep***ing on iron content). Switching voltage 140 V ac, 200 V dc. Maximum switching load 10 W, 0.25 A. Operating temperature -40° to 85°C. ABS housing material. 2 core cable
Spec
- Quantity:1piece
- Switch Shape : Rectangular
- Switch Type : Metal Sensor
- Pole and Throw Configuration : SPST-NC, SPST-NO
- Normal State Configuration : NO/NC
- Output Type : Current, Voltage
- Terminal Type : Wire Lead
- Maximum Current : 250 mA
- Maximum AC Voltage : 140V
- Maximum DC Voltage : 200V
- Switching Frequency : 100 Hz
- Contact Resistance : 100mΩ
- Total Length : 340mm
- Length : 40mm
- Maximum Operating Temperature : +85°C
- CODE No.:136-5753
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

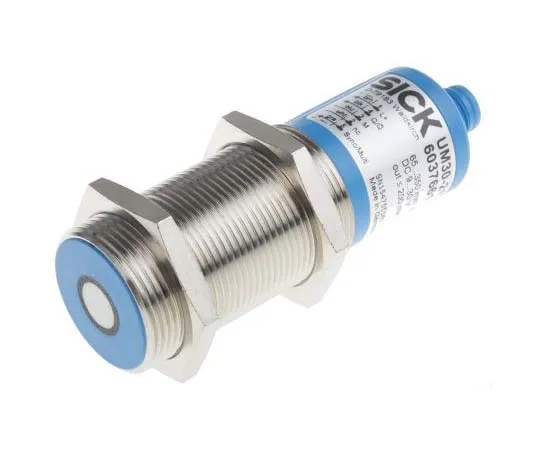

63-7709-19 Sick Ultrasonic Sensor Barrel M30 x 1.5, 60 → 350 mm, PNP, M12 - 5 Pin IP67 UM30-212111
