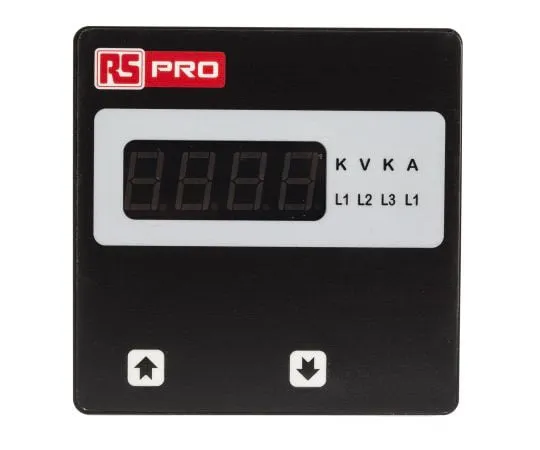

63-7366-17 RS PRO BT14 Series Digital Voltmeter AC, LED Display 4-Digits ±0.5 + 1 Digit % 136-5389
Product Description
Product Model: 63-7366-17Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7366-17
Product Brand: RS PRO
Features
- RS Pro Digital Voltmeter- 1 Phase. RS Pro digital voltmeters designed for *** in industrial applications which require precise and onsite adjustment of the display range. The single phase voltmeters can be ***d in industrial automation and for laboratory ***s. Features and Benefits. 4-digits ultra-bright LED display (up to 9999) Fast and easy installation (clip-in mounting for 96 x 96 model only) True RMS measurement On-site programmable CT/PT ratios User selectable CT secondary 1A/5A User selectable PT secondary from 60…600 V LC AC Wide auxiliary power supply which can accept any input between 40 V-300 V ac/dc Storage of MIN/MAX values
Spec
- Quantity:1piece
- Current Type : AC
- Number of Digits : 4
- Display Type : LED
- Cutout Height : 92mm
- Cutout Width : 92mm
- Depth : 55mm
- Digit Height : 14 mm
- Meter Accuracy : ±0.5 + 1 Digit %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Meter Type : Electronic
- Maximum Temperature : +50°C
- Measurement Range : 60 → 600 (Input)V
- CODE No.:136-5389
