Features

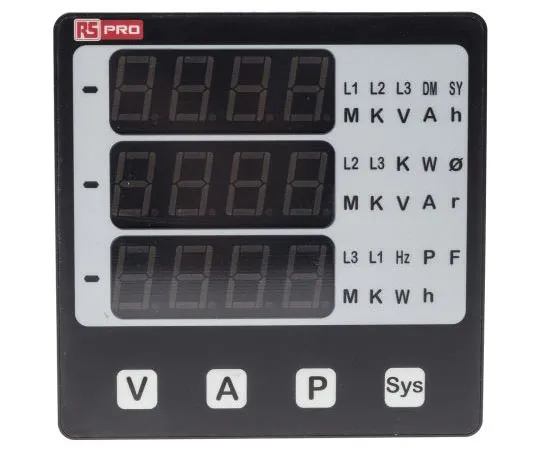

• 4 Digit, 3 Line Digital Multi-function Meters. RS Pro digital panel meters measure important electrical parameters in 3 phase 4-wire and 3 phase three wire network and replaces the need for multiple analogue meters. It measures electrical parameters such as AC voltage, AC current, Frequency, Active, Reactive and more. Features and Benefits. 3 line, 4-digit ultra-bright LED display (up to 9999) Fast and easy installation on panel with self-clicking True RMS measurement Limit switch (optional) On-site programmable CT/PT ratios User selectable CT secondary 1A/5A User selectable PT secondary from 100 VLL to 500 VLL User selectable 3 ph 3 wire/3 ph 4 wire/single phase network 2 Auxiliary power supply available 40 V-300 V ac/dc or 12 V-48 V dc Storage of MIN/MAX values Measurement and display of RPM, run hours, on hours, no. of interruption
