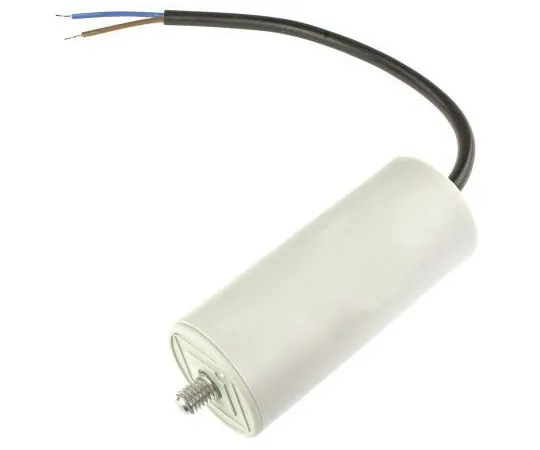

63-7365-80 Ducati Energia 20μF Polypropylene Capacitor PP 450V ac ±5% Tolerance Plug In 4.16.17 Series 4.16.17.68.06
model:
63-7365-80
brand:
Ducati Energia
Product Description
Product Model: 63-7365-80Product Brand: Ducati Energia […]
Contact Us
Product Details
Product Model: 63-7365-80
Product Brand: Ducati Energia
Features
- VDE 560-8, CEI 33-3, SEV 1029. 4.16.10/15/17/87 Series. These polypropylene film capacitors feature a self-healing metallised polypropylene dielectric. Constructed with a self-extinguishing plastic cover and case, a polyurethanic resin is ***d to seal the capacitive element. Plastic case with stud Termination via double insulated two core lead Non-inductive winding Low losses Short circuits avoided due to self healing properties Compact size No leakage risk. Voltage for 4.16.10 Series: 400 V - 10000h cl. B - 25/85/21 425 V - 10000h cl. B - 25/85/21 450 V - 3000h cl. C 25/85/21 475 V - 3000h cl. c - 25/85/21 500 V - 1000h cl. D - SI120/20. Voltage for 4.16.15 Series: 400 V - 10000h cl. B - 25/100/21 425 V - 30000h cl. A - 25/85/21 475 V - 10000h cl. B - 25/85/21 500 V - 3000h cl. C - 25/85/21. Voltage for 4.16.87 Series: 450 V - 10000h cl. B - 25/85/21. Voltage for 4.16.17 Series: 425 V - 30000h cl. A - 25/85/21 475 V - 10000h cl. B - 25/85/21 500 V - 3000h cl. C - 25/85/21
Spec
- Quantity:1piece
- Capacitance : 20µF
- Voltage : 450V ac
- Mounting Type : Plug In
- Tolerance : ±5%
- Series : 4.16.17
- Height : 70mm
- Dimensions : 45 x 70mm
- Dielectric : Polypropylene
- Lead Length : 2.8mm
- CODE No.:135-3591
