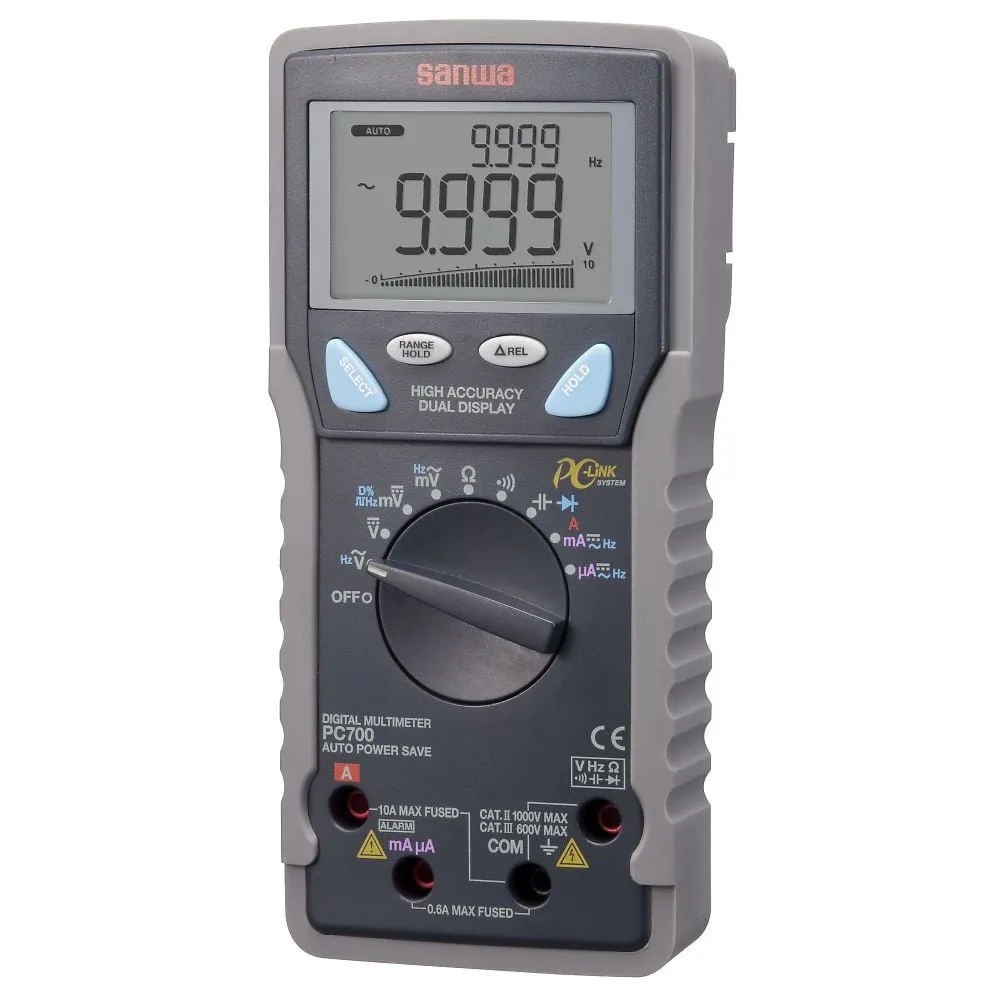

61-3516-42 Digital Multimeter High Accuracy, High Resolution (PC Connection) PC700
Product Description
Product Model: 61-3516-42Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3516-42
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- PC connection available (optional)
Spec
- DCV: 60m/600m/9.999/99.99/999.9V
- ACV: 60m/600m/9.999/99.99/999.9V
- DCA: 600μ/6000μ/60m/600m/6/10A
- ACA: 600μ/6000μ/60m/600m/6/10A
- Resistance: 600/6k/60k/600k/6M/60MΩ
- Condenser capacity: 60n/600n/6μ/60μ/600μ/6m/25mF
- Frequency: 15Hz - 50kHz
- Logic frequency: 5Hz - 1MHz
- Duty ratio: 0% - 100%
- Continuity: Buzzer sound at 20Ω - 300Ω or less, open voltage approx 1.2V
- Diode test: Open voltage approximately 3.5V
- Built-in f***: 11A/1000V IR20kA φ10 x 38mm, 0.4A/1000V IR30kA φ6.3 x 32mm
- Power supply: 6F22 (9V battery) x 1
- Dimensions/mass: H184 x W86 x D52mm/approx 430g
