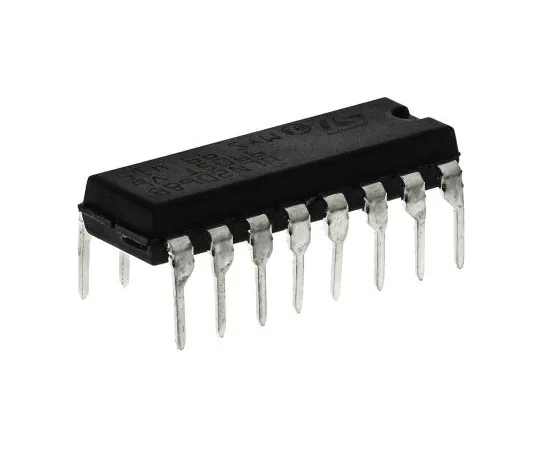

63-7362-02 STMicroelectronics ULN2068B Quad NPN Darlington Pair, 1.75 A 50 V, 16-Pin PDIP ULN2068B
model:
63-7362-02
brand:
STMicroelectronics
Product Description
Product Model: 63-7362-02Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-7362-02
Product Brand: STMicroelectronics
Features
- Darlington Transistor Arrays, STMicroelectronics. Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.
Spec
- Quantity:1set(25pieces)
- Transistor Type : NPN
- Maximum Continuous Collector Current : 1.75 A
- Maximum Collector Emitter Voltage : 50 V
- Maximum Emitter Base Voltage : 50 V
- Package Type : PDIP
- Mounting Type : Through Hole
- Pin Count : 16
- Transistor Configuration : Common Emitter
- Number of Elements per Chip : 4
- Maximum Collector Emitter Saturation Voltage : 1.4 V
- Maximum Operating Temperature : +85 °C
- CODE No.:920-8979
