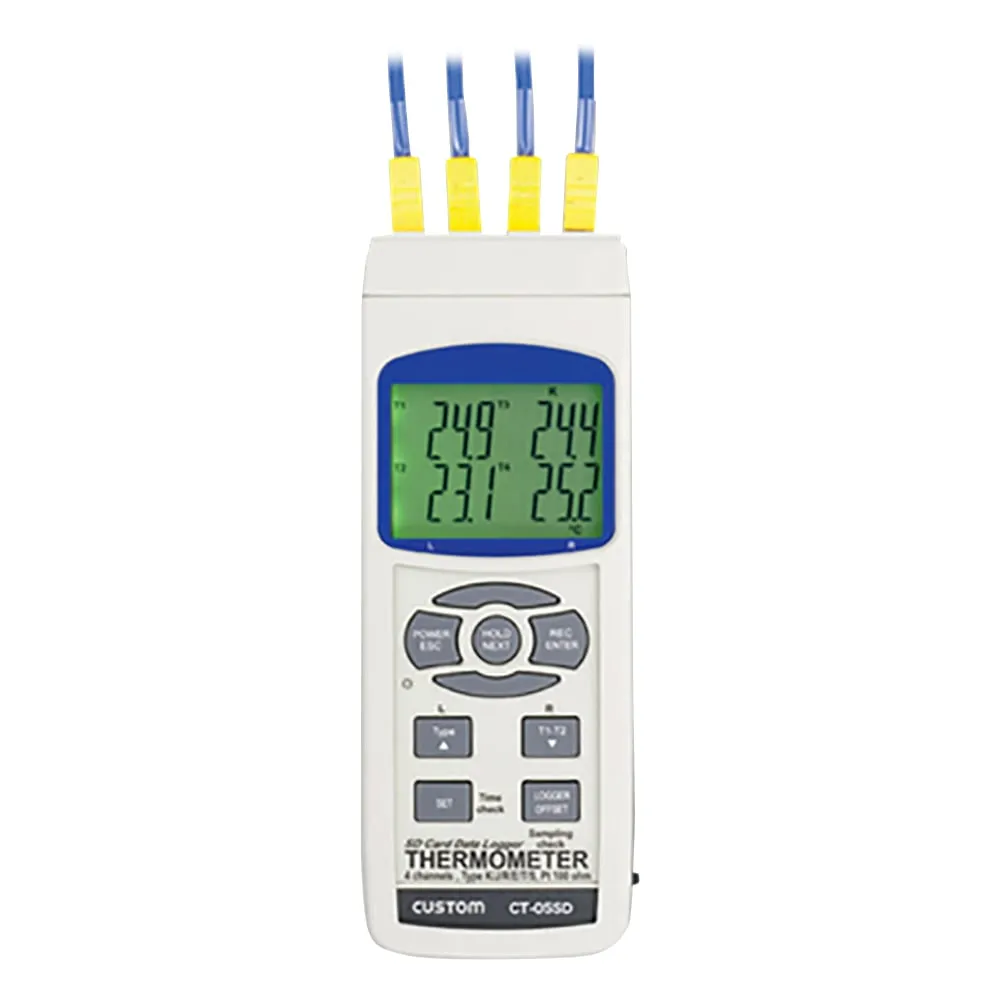

1-2876-01-20 4 Channel eThermometer With Calibration Certificate CT-05SD
Product Description
Product Model: 1-2876-01-20Product Brand: CUSTOM corpor […]
Contact Us
Product Details
Product Model: 1-2876-01-20
Product Brand: CUSTOM corporation
Features
- Easy data recording with SD card.
Spec
- Model number: CT-05SD
- Main unit
- Measurement range: K class thermocouple/100.0 ~ + 1300 ℃, Pt 100Ω/199.9 ~ + 850.0 ℃
- Resolution: K class thermocouple/0.1 ℃ (-100.0 to 999.9 ℃), 1 ℃ (1000 to 1300 ℃), Pt 100Ω/0.1 ℃
- Accuracy: K class thermocouple (-50.0 to + 999.9 ℃)/±(0.4% + 0.5 ℃), Others/±(0.4% + 1 ℃)
- Measured interval : 1, 2, 5, 10, 30, 60, 120, 300, 600 1800, 3600 seconds (settable)
- Function: Temperature calculation, data hold, MAX/MIN display, auto power off
- Interface: RS 232 C SD card
- Power supply : AA size battery x 6 pieces (test attachment) or AC adapter (VSM -932 EK sold separately)
- Size: 68 x 45 x 177mm
- Weight: about 380g
- *SD card is not included.
- *Please *** IK series for K class thermocouple sensor.
- Accessories: Calibration certificates
- *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
