Features

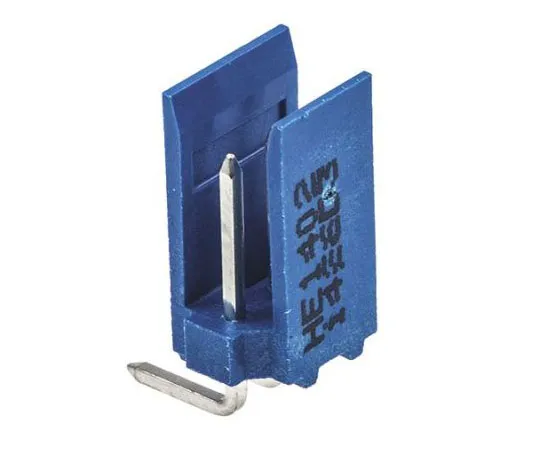

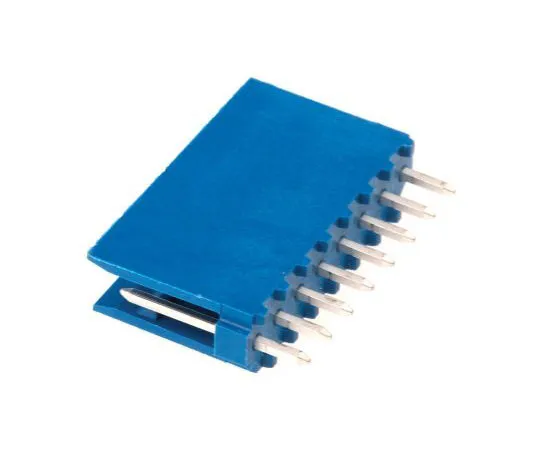

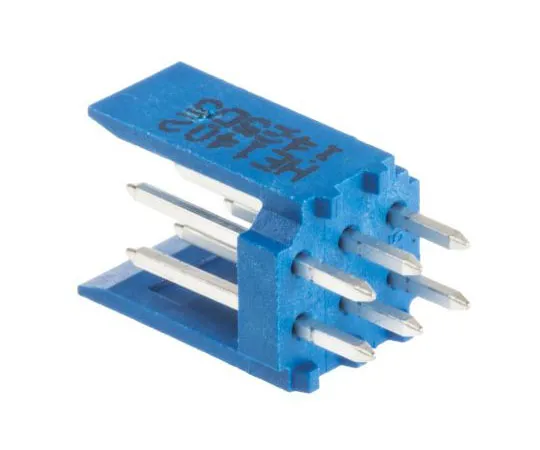

• 6 way double row means - 2 rows of 3 pins per row, 8 way double row means - 2 rows of 4 pins per row etc. TE Connectivity AMPMODU HE14 2.54 mm Shrouded PCB Headers. AMPMODU HE14 shrouded PCB pin headers with a 2.54mm centreline and blue high temperature UL 94V-0 rated thermoplastic housings. The housings of these AMPMODU HE14 PCB headers are polarized to prevent mismating and have protective shrouds for pin protection. The shrouds also feature an integrated friction lock for a secure mating connection. These AMPMODU HE14 PCB headers mate with AMPMODU HE14 IDC receptacles for terminating discrete wires or 2.54 mm centreline ribbon cables. Features and Benefits. High temperature thermoplastic housings Shrouds for pin protection Polarization to prevent mismating Integrated friction lock for secure connection. Applications. These AMPMODU Mod II PCB pin headers are suitable for *** in a wide range of applications. Applications include automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment and appliances
