Electronic/Electrical Parts and Controll Equipments

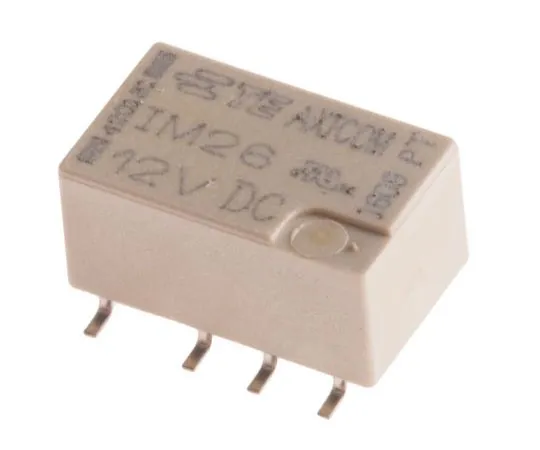

63-7360-82 TE Connectivity DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2A IM26GR
model:
63-7360-82
brand:
TE Connectivity
Product Description
Product Model: 63-7360-82Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7360-82
Product Brand: TE Connectivity
Features
- UL. Telecom/Signal Relay IM Series. Slimline and low profile - 10x6x5.65 mm Gull wing SMT legs Bifurcated contacts, gold plated Hermetically sealed (RT V), IP67 High mechanical shock resistance up to 300G functional, 500G survival Insulation resistance at 500Vdc >10 9 Ω High surge capability - meets Telcordia TR-NWT-001089 (2 / 10 μs) & EC 60950 (10 / 700 μs)
Spec
- Quantity:1set(1000pieces)
- Coil Voltage : 12V dc
- Coil Power : 50mW
- Coil Resistance : 2.88 kΩ
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 2A
- Terminal Type : Surface Mount
- Maximum Switching Power DC : 60 W
- CODE No.:163-8534
