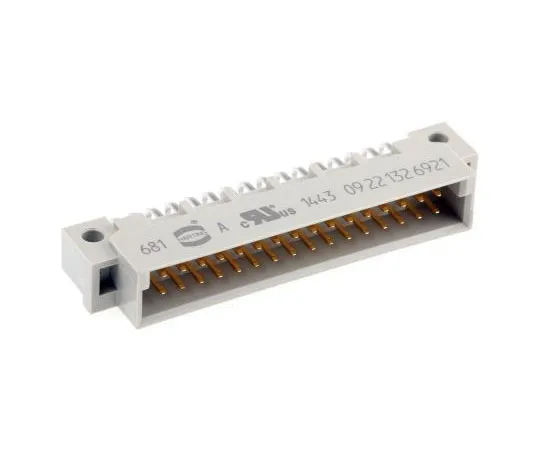

63-7360-10 Harting 32 Way 2.54mm Pitch, Type 2B Class C2, 2 Row, Right Angle DIN 41612 Connector, Plug 9221326921
Product Description
Product Model: 63-7360-10Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-7360-10
Product Brand: HARTING
Features
- Harting DIN 41612 Complementary Type 2B Backplane Signal Connectors. Harting DIN 41612 complementary type 2B backplane signal connectors are designed for PCB applications with a maximum of 2A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 complementary type 2B PCB backplane signal connectors offer an economical solution to many electronic signal connector design applications. Operating temp -55 to +125 °C 2A max per contact Test voltage 1kV Contact resistance up to 20mΩ Thermoplastic resin - glass fibre filled Copper alloy contacts Termination Method - Solder
Spec
- Quantity:1box(20pieces)
- Number of Contacts : 32
- G***er : Male
- Number of Rows : 2
- Body Orientation : Right Angle
- Termination Method : Solder
- Row Loading : a/b
- Type : 2B
- Pitch : 2.54mm
- Mounting Type : Through Hole
- Class Rating : C2
- Current Rating : 2A
- CODE No.:923-0865
