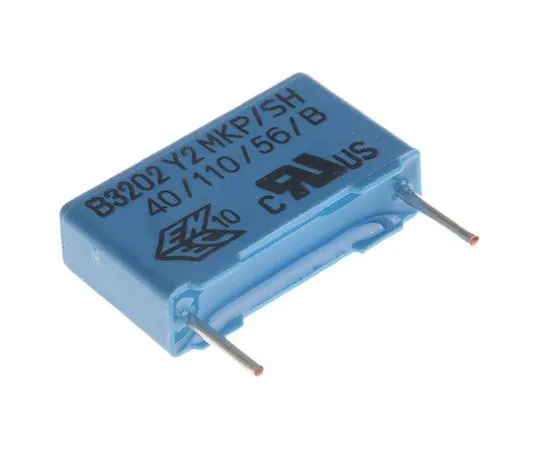

63-7359-95 EPCOS 10nF Polypropylene Capacitor PP 300V ac ±20% Tolerance Through Hole B32022 Series B32022A3103M000
Product Description
Product Model: 63-7359-95Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7359-95
Product Brand: EPCOS
Features
- EN 132400 / IEC 60384-14 (300 V AC) UL1414 (250 V AC) UL1283 (400 V AC) CSA C22.2 No.1 (250 V AC) CSA C22.2 No.8 (400 V AC). Capacitors are designed for connecting directly across a mains supply but should NOT be ***d in positions where failure of a capacitor would expose anybody to electric shock. B3202* Series. Polypropylene construction with a plastic case (UL 94 V-0) and epoxy resin sealing (UL 94 V-0) Very small dimensions Good self-healing properties High voltage capability Typical applications include Y2 class for interference suppression and "Line to ground" applications Operating Temperature: -40 → 110 °C
Spec
- Quantity:1bag(1000pieces)
- Capacitance : 10nF
- Voltage : 300V ac
- Mounting Type : Through Hole
- Tolerance : ±20%
- Series : B32022
- Lead Pitch : 15mm
- Length : 18mm
- Depth : 5mm
- Height : 10.5mm
- Dimensions : 18 x 5 x 10.5mm
- Dielectric : PP
- Terminal Type : Through Hole
- CODE No.:172-5912
