Electronic/Electrical Parts and Controll Equipments

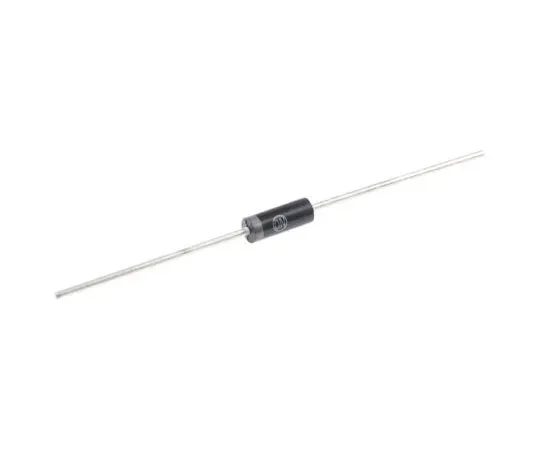

63-7359-81 ON Semiconductor, 13V Zener Diode 5% 5 W Through Hole 2-Pin DO-15 1N5350BG
model:
63-7359-81
brand:
ON Semiconductor
Product Description
Product Model: 63-7359-81Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7359-81
Product Brand: ON Semiconductor
Features
- Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor. ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable. Applications. Industrial
Spec
- Quantity:1box(1000pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Maximum Power Dissipation : 5 W
- Package Type : DO-15
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 100mA
- Maximum Zener Impedance : 2.5Ω
- Maximum Reverse Leakage Current : 1µA
- Length : 8.89mm
- Dimensions : 8.89 x 3.68 x 3.68mm
- Minimum Operating Temperature : -65 °C
- CODE No.:145-3277
