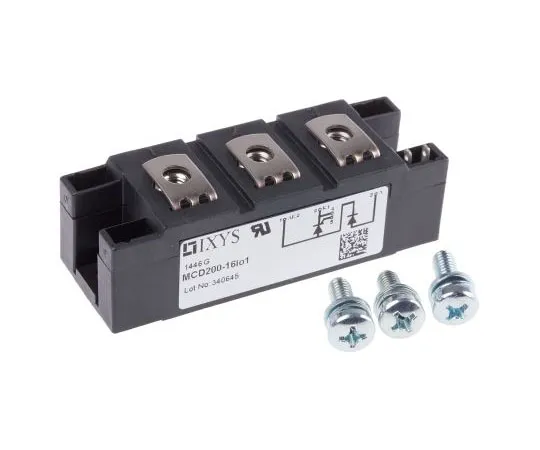

63-7359-60 IXYS, MCD200-16IO1, Thyristor Module SCR, 216A 1600V, 5-Pin Y4 M6 MCD200-16IO1
Product Description
Product Model: 63-7359-60Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7359-60
Product Brand: IXYS
Features
- UL recognised component. MCD Series Thyristor ; Diode Module, IXYS. Thyristor in series with a Diode for mains voltage 50/60 Hz rectification. Package with Direct Copper Bonding (DCB) ceramic base plate
Spec
- Quantity:1box(6pieces)
- Thyristor Type : SCR Module
- Maximum Gate Trigger Voltage : 2V
- Maximum Gate Trigger Current : 150mA
- Maximum Holding Current : 150mA
- Rated Average On-State Current : 216A
- Repetitive Peak Reverse Voltage : 1600V
- Surge Current Rating : 8.6kA
- Mounting Type : Panel Mount
- Package Type : Y4 M6
- Pin Count : 5
- Peak On-State Voltage : 1.2V
- Repetitive Peak Forward Blocking Voltage : 1600V
- Repetitive Peak Off-State Current : 15mA
- Dimensions : 94 x 34 x 30mm
- Width : 34mm
- CODE No.:168-4524
