Features

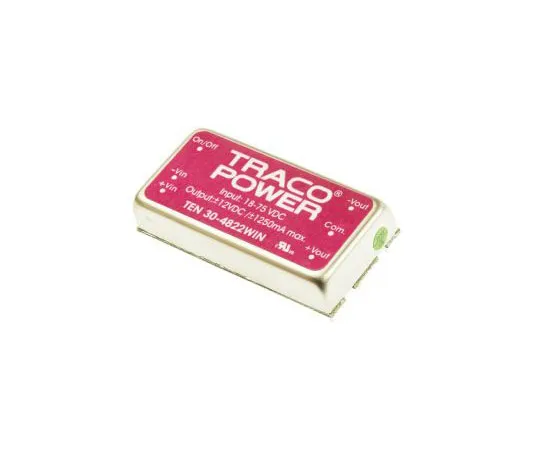

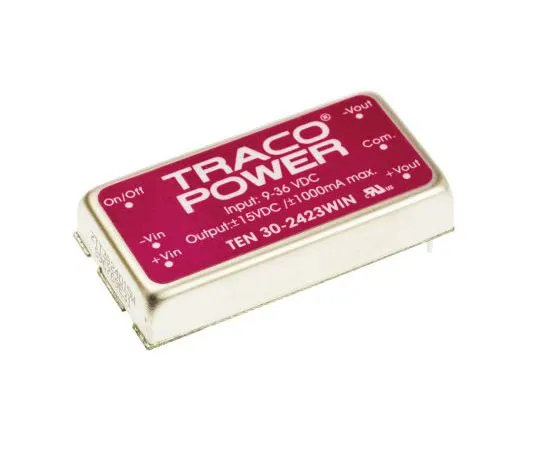

• EN 60950-1, UL 60950-1, IEC 60950-1. UL/cUL recognised. Operating temperature is with derating of 3.5% per °C above 60°C. MTBF to MIL-HDBK-217F (25°C). Load regulation for dual output models is for balanced load. For suitable heatsink see stock number ; 745-1234 745-1234 Suitable common mode chokes: TEN 30-241x and TEN 30-242x : see ; 745-1222 745-1222 (L1) and ; 745-1231 745-1231 (L2) TEN 30-243x : see ; 745-1183 745-1183 (L1) and ; 745-1196 745-1196 (L2) TEN 30-481x and TEN 30-482x: see ; 745-1222 745-1222 (L1) and ; 745-1231 745-1231 (L2) TEN 30-48xx : see ; 745-1183 745-1183 (L1) and ; 745-1196 745-1196 (L2). 3. Traco 30W Single/Dual/Triple Output High Power Density Regulated Isolated DC-DC Converter - TEN 30WIN Series. 30W single/dual/triple output high power density regulated isolated DC-DC encapsulated converter modules with a wide voltage input range and compact, low profile case. These high power density regulated isolated DC-DC encapsulated converter modules are suitable for *** in battery operated equipment and distributed power architectures in communication and industrial electronics. High power density, 25.4x50.8x10.2mm package Ultra-wide 4:1 input voltage range Regulated outputs ±10% adjustable output voltage by using external resistors (single output models only) 1.5kV input / output isolation High efficiency up to 91% No minimum load required Input filter meets EN 55022 Class A Remote On/Off Over-temperature, over-voltage, over-load and short circuit protection Shielded metal case with insulated baseplate Industry standard pin-out
