Features

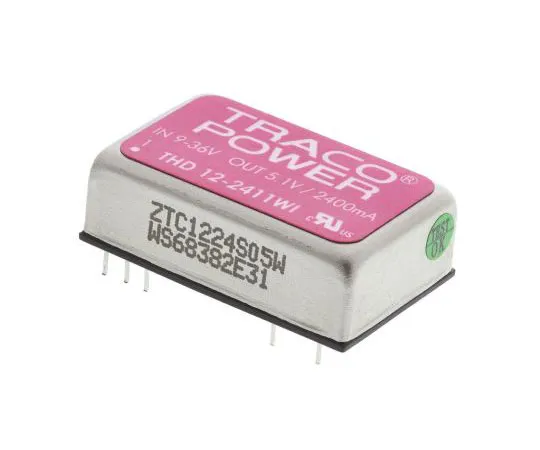

• UL 60950-1, IEC/EN 60950-1. UL/cUL. 3. Traco 12W Output Regulated Isolated DC-DC Converter - THD12WI Series. The Traco Power THD 12WI series is a range of high performance, isolated, 12 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The THD 12WI series feature Built-in filters for both input and output minimizing the need of external filtering. These DC-DC converters offer overload and overvoltage protection, as well as remote On/Off. The THD 12WI DC-DC power supplies have a full SMD-design with exclusive *** of ceramic capacitors, which guarantees high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB. High power density: 12W in DIP 24 package Ultra-wide 4:1 input range Very high efficiency up to 85% I/O isolation 1500V Input filter meets EN 55022A without ext. components Remote On/Off Under voltage lock-out circuit Shielded metal case with insulated baseplate Continuous short-circuit protection Operating temp. range –40°C to +85°C Lead free design, RoHS compliant
