Features

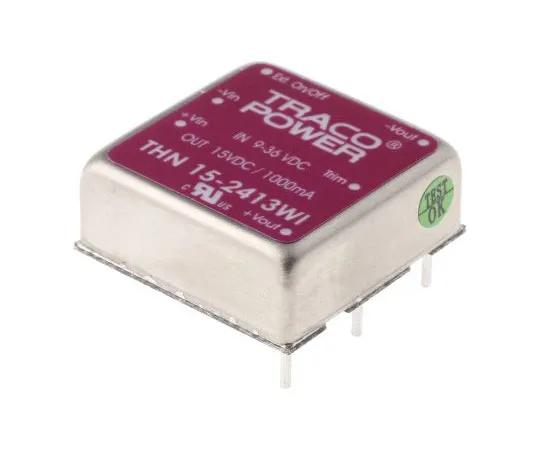

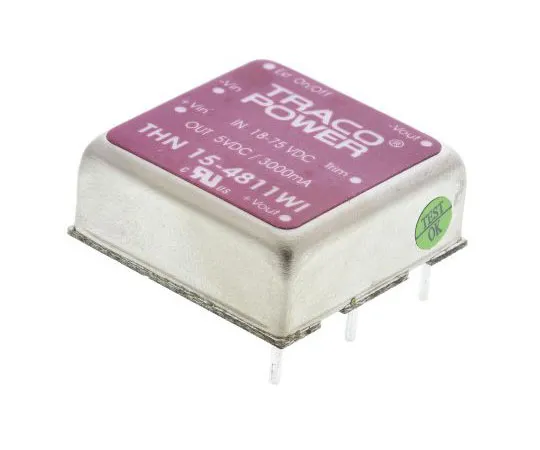

• UL/cUL 60950-1, EN 60950-1, IEC 60950-1. CB, UL/cUL. 3. Traco 15W Single Output Regulated Isolated DC-DC Converter - THN15WI Series. The Traco Power THN 15WI series is a range of 15W single output regulated isolated high performance DC-DC converter modules with high power density, compact design and wide input voltage range. These single output regulated isolated high performance DC-DC converter modules have a high efficiency allowing an operating temperature of up to - 40°c to +85°C with derating. Typical applications for the THN 15WI series of DC-DC converter modules include battery operated equipment, mobile instrumentation, distributed power architectures in communication and industrial electronics. High power density, ultra-miniature 25.4x25.4x9.9mm package Ultra-wide 4:1 input voltage range Regulated outputs Adjustable output voltage by using external resistors 1.5kV input / output isolation High efficiency up to 87% Low ripple and noise Built-in filter meets EN 55022, Class A and FCC, Level A with external capacitor Remote On/Off Over-voltage, over-load and short circuit protection Shielded metal case with insulated baseplate Industry standard pin-out
