Features

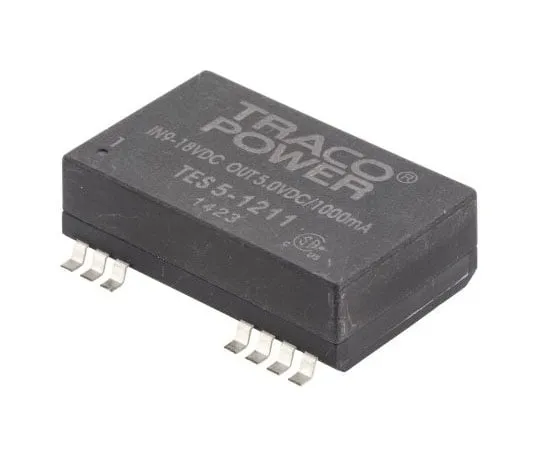

• EN 60950-1, UL 60950-1, IEC 60950-1. CSA. De-rating 3.5% per °C above 70°C. MTBF to MIL-HDBK-217F (25°C). 3. Traco 5W SMD Single/Dual Output Regulated Isolated DC-DC Converter - TES 5 Series. 5W single/dual output regulated isolated DC-DC high performance converter modules with a low profile SMD package. These isolated DC-DC high performance converter modules have a high efficiency enabling an operating temperature of up to 71°C at full load and a built in EMI filter to EN 55022 class A and FCC level A. Typical applications for these isolated DC-DC converters include battery powered equipment, instrumentation, communication systems and industrial controls. Low profile SMD package 1.5kV input / output isolation Wide 2:1 input Regulated outputs High accuracy of pin co-planarity Built-in filter meets EN 55022, Class A and FCC, Level A without external components Remote On/Off Short circuit protection UL94V-0 package material Qualified for lead-free reflow solder process according IPC/JEDEC J-STD-020C, peak temperature 245°C (for 20 sec. max.)
