Electronic/Electrical Parts and Controll Equipments

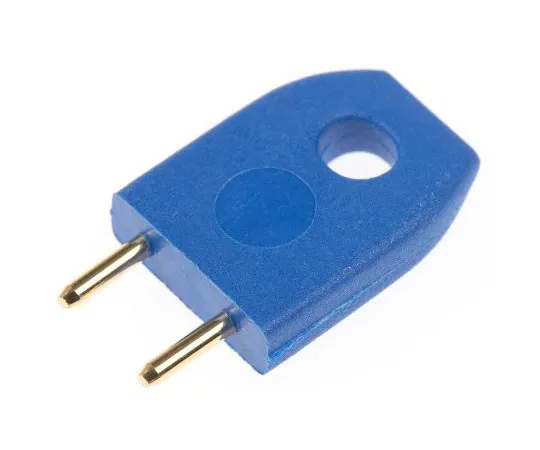

63-7357-21 HARWIN Shorting Link Male Straight Blue Closed Top 2 Way 1 Row 5.08mm Pitch D3086-97
Product Description
Product Model: 63-7357-21Product Brand: HARWIN Features […]
Contact Us
Product Details
Product Model: 63-7357-21
Product Brand: HARWIN
Features
- Harwin D308 Series 1mm Ø Shorting Link Plugs. D308 series 1mm diameter insulated and un-insulated shorting link plugs with a variety of leg pitches and insulation colours. These D308 insulated shorting link plugs have a high performance gold plated brass finish and a colour coded PBT UL94V-0 housing. The insulated versions are not designed for direct soldering to the the PCB but can be ***d with PCB sockets in hardware programming applications. The D308 un-insulated links can be soldered directly onto a PCB for permanent linking. Part numbers D308-X-97, D308-X-98 and D308-X-99 are insulated versions
Spec
- Quantity:1bag(100pieces)
- Type : Closed Top
- Number of Contacts : 2
- Pitch : 5.08mm
- G***er : Male
- Colour : Blue
- Number of Rows : 1
- Length : 9.5mm
- Width : 12.7mm
- Depth : 3.2mm
- Contact Material : Brass
- Contact Plating : Gold
- Orientation : Straight
- CODE No.:173-0977
