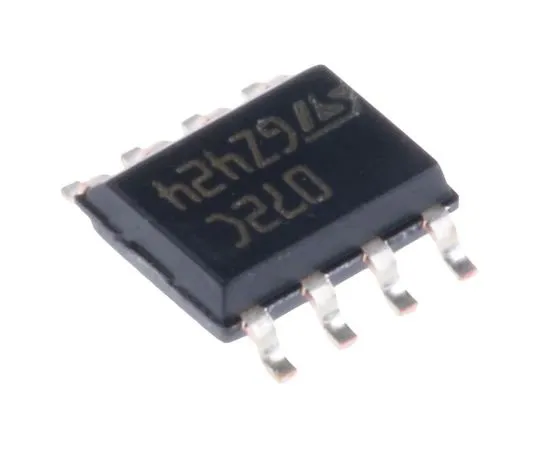

63-7356-98 TL072CDT STMicroelectronics, Op Amp, 4MHz, 8-Pin SOIC TL072CDT
model:
63-7356-98
brand:
STMicroelectronics
Product Description
Product Model: 63-7356-98Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-7356-98
Product Brand: STMicroelectronics
Features
- TL06x, TL07x, TL08x, JFET Inputs, Low Input Bias Current Operational Amplifiers. The TL06x, TL07x, and TL08x are operational amplifiers with high input impedance JFET input stage. They feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient. Low-Power consumption: 200 μA (TL06x, per amplifier) Wide common-mode and differential voltage ranges Low Noise, typical 15 nV/√Hz (TL07x) Low harmonic distortion: 0.01% (TL07x) Output short circuit protection Internal frequency compensation Latch up free operation High Slew rate: 16 V/μs (TL07x, TL08x), 3.5 V/μs (TL06x)
Spec
- Quantity:1set(2500pieces)
- Mounting Type : Surface Mount
- Package Type : SOIC
- Power Supply Type : Dual
- Number of Channels per Chip : 2
- Pin Count : 8
- Typical Gain Bandwidth Product : 4MHz
- Typical Dual Supply Voltage : ±12 V, ±15 V, ±5 V, ±9 V
- Typical Slew Rate : 16V/µs
- Minimum Operating Temperature : 0 °C
- Rail to Rail : No
- CODE No.:178-5093
