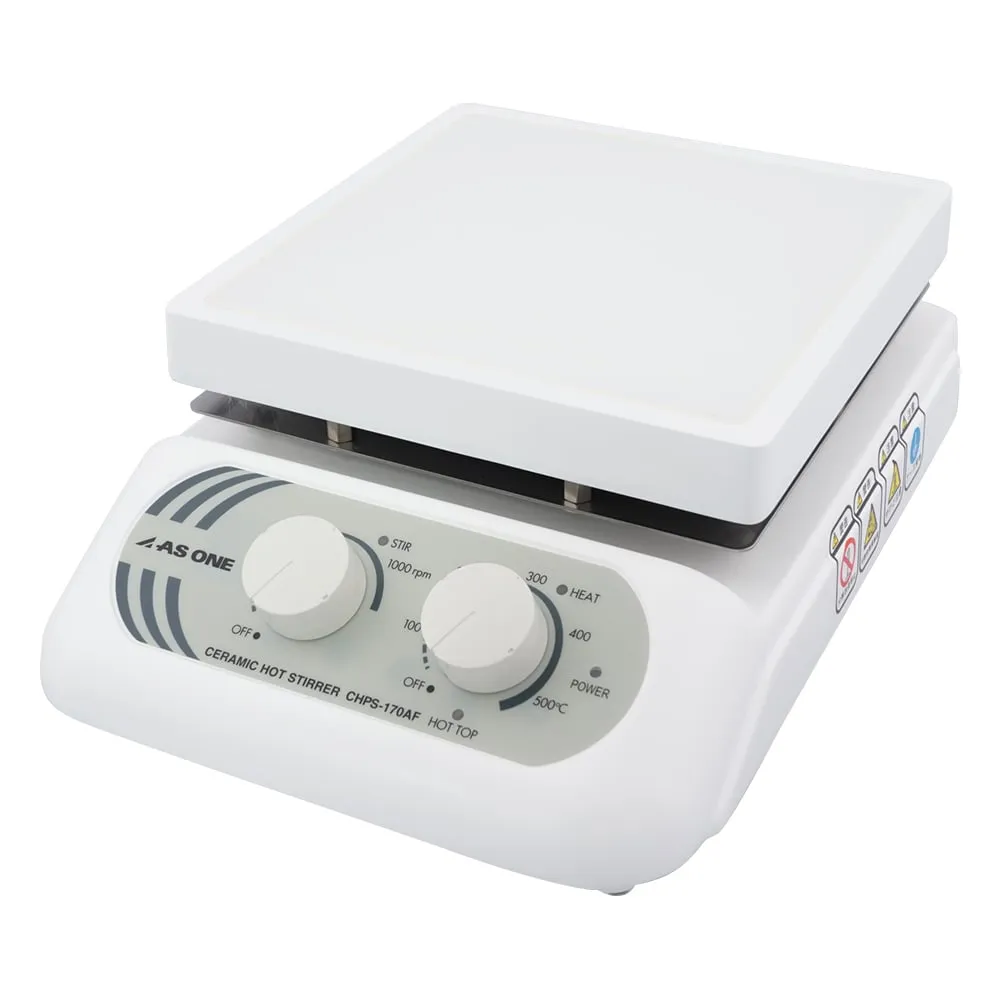

2-8080-31-22 Ceramic Hot Stirrer (Analog Type) 550 °C 175 x 178 mm with Pre-shipment Inspection Certificate CHPS-170AF
Product Description
Product Model: 2-8080-31-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-8080-31-22
Product Brand: AS ONE Corporation
Features
- Ceramic glass plate with excellent heat and chemical resistance.
- Can be ***d for high temperature heating up to 550°C.
- A new algorithm for PID temperature control improves plate temperature control.
- It has a high temperature warning display function so that you don't accidentally touch it at high temperature.
- Slow-start rotation function suppresses scattering of solution.
Spec
- Maximum temperature (deg. C): 550
- Plate size (mm): 175 x 178
- Speed: Up to about 1200 rpm
- Motor: DC brush motor
- Temperature control method: PID control
- Sensor: K thermocouple
- Temperature and speed control: Volume setting system
- Material: Plate/Ceramic, Body/Aluminum die-cast heat resistant paint
- Heater capacity: 900 W
- Safety device: Overcurrent f*** and high temperature warning display function
- Power supply: 100 VAC 50/60 Hz
- Power cord length: about 1.5 m
- Heating plate size (mm): 155 x 159
- Body size: 194 x 292 x 104 mm
- Weight: approximately 3 kg
- *A rotor is not included. (Recomm***ed rotor: Φ8 x 30 mm)
- Inspection contents App***ix: Inspection inspection documents
- Measured speed, measured temperature, insulation resistance value and apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
