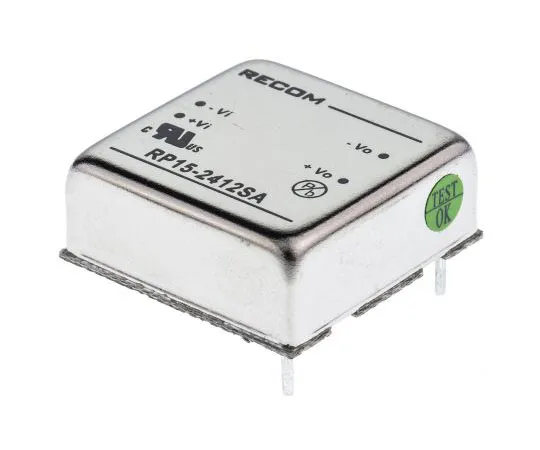

63-7356-81 Recom RP15 A 15W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 12V dc RP15-2412SA
Product Description
Product Model: 63-7356-81Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-81
Product Brand: Recom
Features
- Operating temperature is with derating. MTBF to MIL-HDBK-217F (25°C).. Recom 15W Single Output Regulated Isolated DC-DC Converter - RP15-A Series. High power density, ultra-miniature 25.4x25.4x9.9mm package Wide 2:1 input voltage range Regulated outputs 1.6kV input / output isolation High efficiency up to 88% Low ripple and noise Pi input filter, meets EN 55022 Class A with external input capacitors and Class B with external filter Over-voltage, over-current and short circuit protection Shielded metal case with insulated baseplate Industry standard pin-out
Spec
- Quantity:1set(8pieces)
- Output Voltage : 12V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.6kV dc
- Power Rating : 15W
- Output Current : 1.3A
- Mounting Type : Through Hole
- Number of Outputs : 1
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Length : 25.4mm
- CODE No.:162-2721
