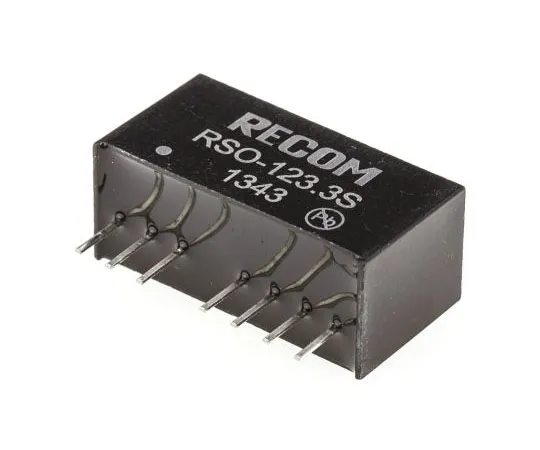

63-7356-76 Recom RSO 1W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 3.3V dc RSO-123.3S
Product Description
Product Model: 63-7356-76Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-76
Product Brand: Recom
Features
- No de-rating over quoted operating temperature range. MTBF to MIL-HDBK-217F (25°C). Recom 1W SIP Single/Dual Output Medical Approved Regulated Isolated DC-DC Converter - RSO Series. Wide 2:1 input voltage range Regulated outputs Medical safety approval EN 60601-1 1kV input / output isolation Low noise No external capacitor needed Remote On/Off Control Continuous short circuit protection UL94V-0 package material SIP-8 package
Spec
- Quantity:1set(22pieces)
- Output Voltage : 3.3V dc
- Input Voltage Range : 9 → 18 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 1kV
- Power Rating : 1W
- Output Current : 300mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Load Regulation : ±0.4%
- Maximum Temperature : +85°C
- Series : RSO
- CODE No.:166-8882
