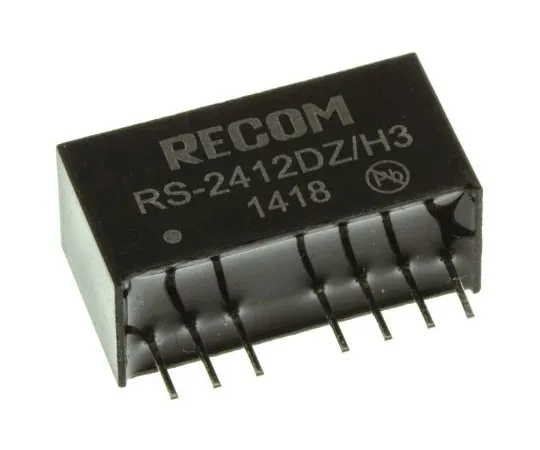

63-7356-57 Recom RS 2W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±12V dc RS-2412DZ/H3
Product Description
Product Model: 63-7356-57Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-57
Product Brand: Recom
Features
- De-rate above 75°C operating temperature. MTBF to MIL-HDBK-217F (25°C). Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS-Z/H3 Series. Ultra-wide 4:1 input voltage range Regulated outputs 3kV input / output isolation Low noise No external capacitor needed Remote On/Off Control Continuous short circuit protection UL94V-0 package material SIP-8 package
Spec
- Quantity:1set(22pieces)
- Output Voltage : ±12V dc
- Input Voltage Range : 9 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 3kV dc
- Power Rating : 2W
- Output Current : ±83mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +75°C
- Length : 21.8mm
- CODE No.:162-2718
