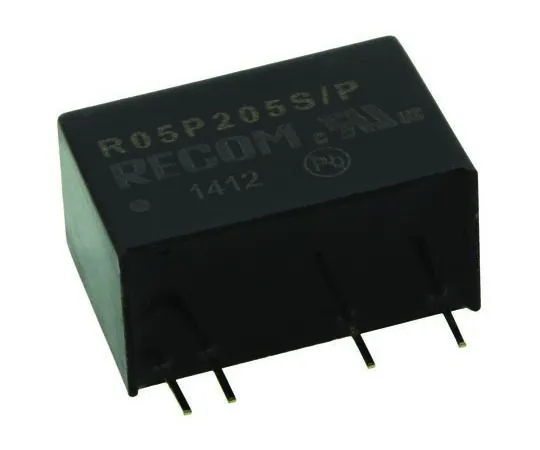

63-7356-53 Recom 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 5V dc R05P205S/P
Product Description
Product Model: 63-7356-53Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-53
Product Brand: Recom
Features
- EN 60601-1, EN 60950-1, UL 60950-1, CSA C22.2. UL recognised, CSA. No de-rating over quoted operating temperature range. MTBF to MIL-HDBK-217F (25°C). Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxP2xx/P Series. Unregulated outputs Medical safety approval EN 60601-1 5.2kV isolation, ideal for telecom and safety applications where high isolation is required EN 60950 certified, rated for 250Vac Continuous short circuit protection UL94V-0 package material SIP-7 package
Spec
- Quantity:1set(25pieces)
- Output Voltage : 5V dc
- Input Voltage Range : 4.5 → 5.5 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 2.6kV ac
- Power Rating : 2W
- Output Current : 400mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 12.5mm
- CODE No.:166-8826
