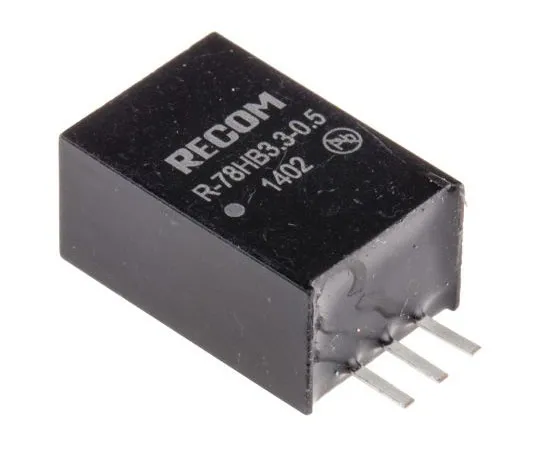

63-7356-39 Recom Switching Regulator, 9 → 72V dc Input, 3.3V dc Output, 500mA R-78HB3.3-0.5
Product Description
Product Model: 63-7356-39Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-39
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. Derate output when operating temperature above 71°C. MTBF to MIL-HDBK-217F (25°C). R78HBxx-0.5 Series. Non-isolated Medical safety approval EN-60601-1-2 High efficiency switching regulator, up to 96% No need for heatsinks Very wide input voltage range, up to 72V Low ripple and noise Thermal shutdown and continuous short circuit protection Pin compatible with LM78xx Linears Industry standard SIP-3 package
Spec
- Quantity:1set(42pieces)
- Input Voltage : 9 → 72V dc
- Output Voltage : 3.3V dc
- Number of Outputs : 1
- Output Current : 500mA
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 76%
- Load Regulation : ±0.6%
- Line Regulation : ±1%
- Width : 8.5mm
- CODE No.:166-8963
